Description

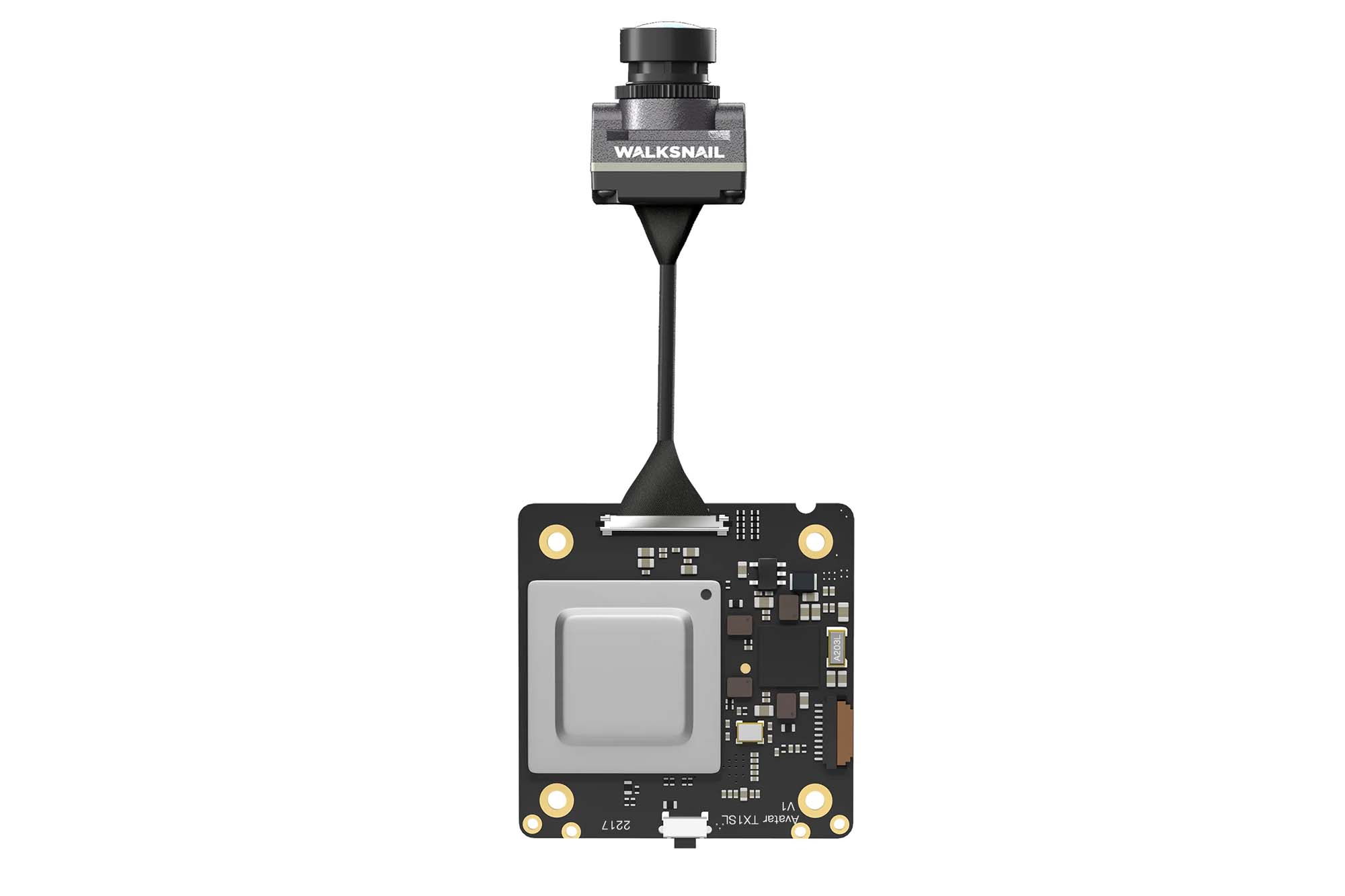

The Walksnail Avatar Mini 1S Kit is a video transmission system designed for use in small unmanned aerial vehicles (UAVs), also known as drones. The kit includes an Avatar 1S VTX (Video Transmission) module, a nano-sized camera, and an LHCP (Left Hand Circular Polarization) antenna. The VTX module is capable of transmitting video at 1080P/60FPS, 720P/120FPS, or 720P/60FPS with an average latency of 22ms in high frame rate mode. It has a single board design and weighs only 6.8g, making it suitable for use in small drones, such as “1S whoops.” The Avatar 1S VTX also includes built-in 8GB storage, allowing it to record 1080p or 720p flight videos without interference. It is compatible with the Walksnail HD goggles or Fat Shark Dominator Avatar HD Goggles and supports BetaFlight canvas mode for OSD (On-Screen Display).
The included Avatar nano camera has a 1/2.7″ image sensor and can capture video at 1080P/60FPS, 720P/120FPS, or 720P/60FPS. It has a 170° field of view and a 2.1mm lens with an aperture of F2.0. The camera measures 14x14x17mm and weighs 3.5g, making it suitable for use in small drones. The camera is connected to the VTX module via coaxial cable.
Specification
- Communication frequency : 5.725-5.850GHz
- Transmitter power (EIRP) : FCC: <25.5dBm; CE: <14dBm; SRRC: <20dBm; MIC: <25dBm
- I/O interface : JST1.0*6 (power in) JST1.0*4 (USB)
- Mounting holes : 25.5*25.5mm
- Dimensions : 33*33*6.5mm
- Storage : 8G
- Recording : 1080p/720p
- Weight : 6.8g
- Operating temperature : -20-40°C
- Channels : 8
- Wide power input : 3.1V - 5V
- Supported FC System : Betaflight
- OSD : Canvas mode
- Bitrate : 25mbps / 50mbps
- Latency : Average delay 22ms
- Antenna : IPEX
CAMERA SPECIFICATIONS
- Model : Avatar nano
- Image sensor : 1/2.7"
- Resolution : 1080P/60fps, 720P/120fps, 720P/60fps
- Ratio : 16/9 4/3
- Lens : 2.1mm
- FOV : 170°
- Aperture : F2.0
- Shutter : Rolling shutter
- Min.Illumination : 0.001Lux
- Weight : 3.5g
- Dimensions : 14*14*17mm
- Coaxial cable : 45/90mm
Includes
- 1x Avatar mini 1S kit
- 1x 4pin USB cable
- 1x 6pin power cable
- 2x M2x3/4mm screw
Product Details
| Product Type | VTX |
| Shipping Weight | 43 grams |
| Vendor | Caddx |
