Walksnail Avatar HD Mini 1s Lite Kit

CaddxSKU: WN05-1005B

Price:
Sale price£89.00

Tax included Shipping calculated at checkout

Stock:
In stock, ready to be shipped

SAME DAY DISPATCH MON-FRI

We dispatch all orders the very same day when placed before our cut-off times. Please see below our current cut off times:

Royal Mail: 3pm | DPD/UPS: 12pm

Same-day dispatch excludes bank holidays and special circumstances - always consult our announcements bar at the top of the page for any exceptions.

Reward Points ⭐️

You could earn 267 points from this item. Learn more.

Description

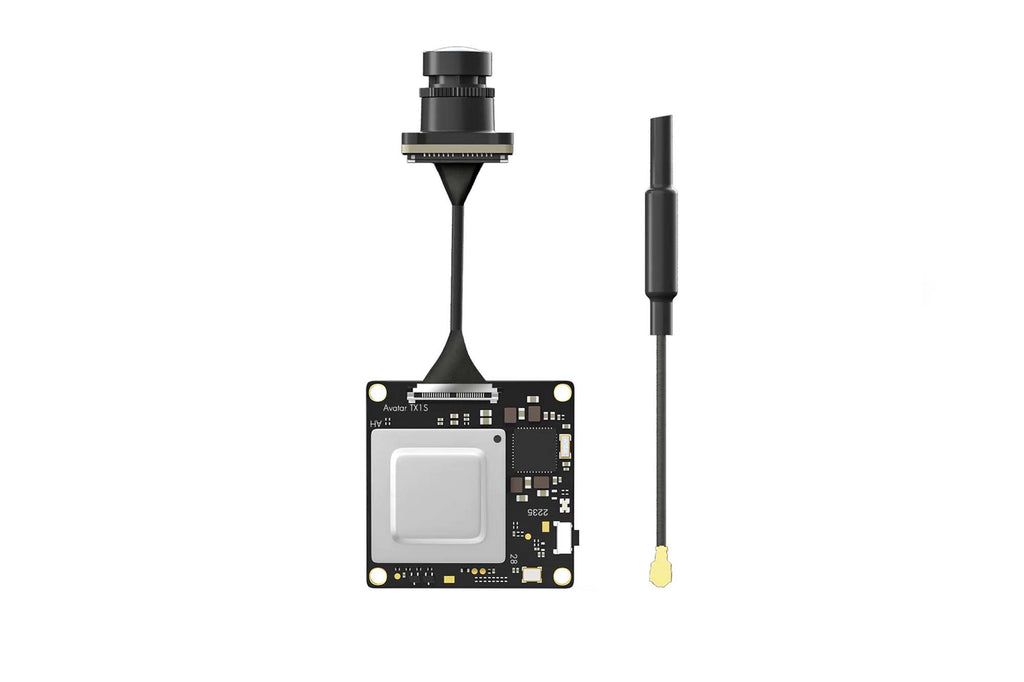

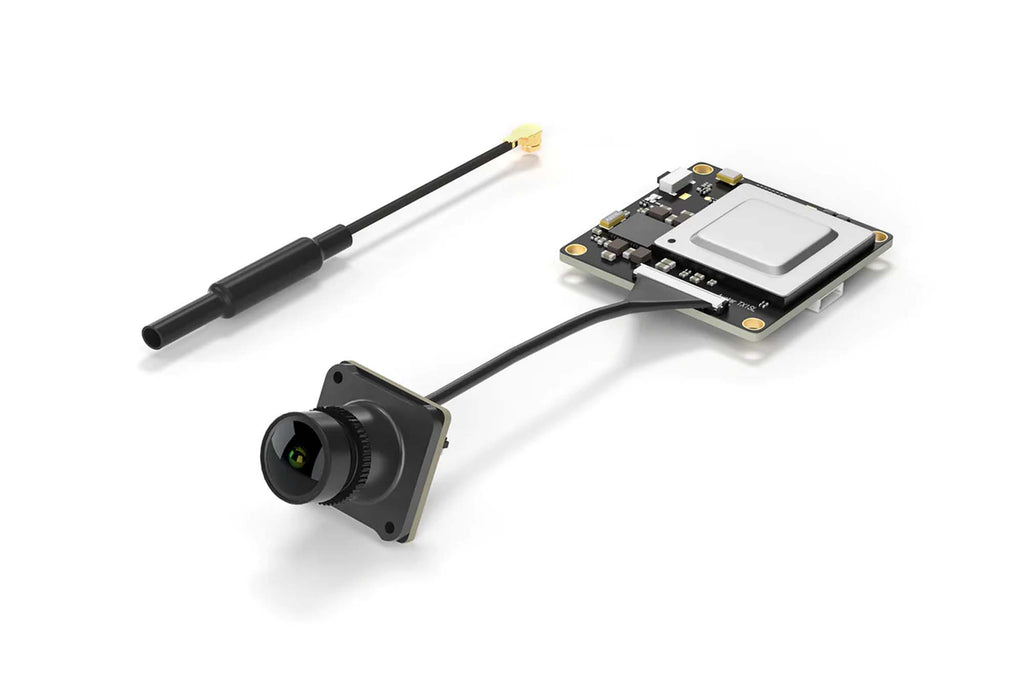

Introducing the Walksnail Avatar Lite HD FPV Kit – the ultimate choice for lightweight and high-performance FPV flying. This kit features the new Avatar Lite camera, which boasts an image sensor of 1/2.7″ and a resolution of 1080P/60fps, 720P/120fps, 720P/60fps. The lens is 2.1mm with a FOV of 170° and an aperture of F2.0. The camera’s minimal plastic design and lack of a back plate make it lighter than ever at only 1.8g, while still maintaining its impressive capabilities.

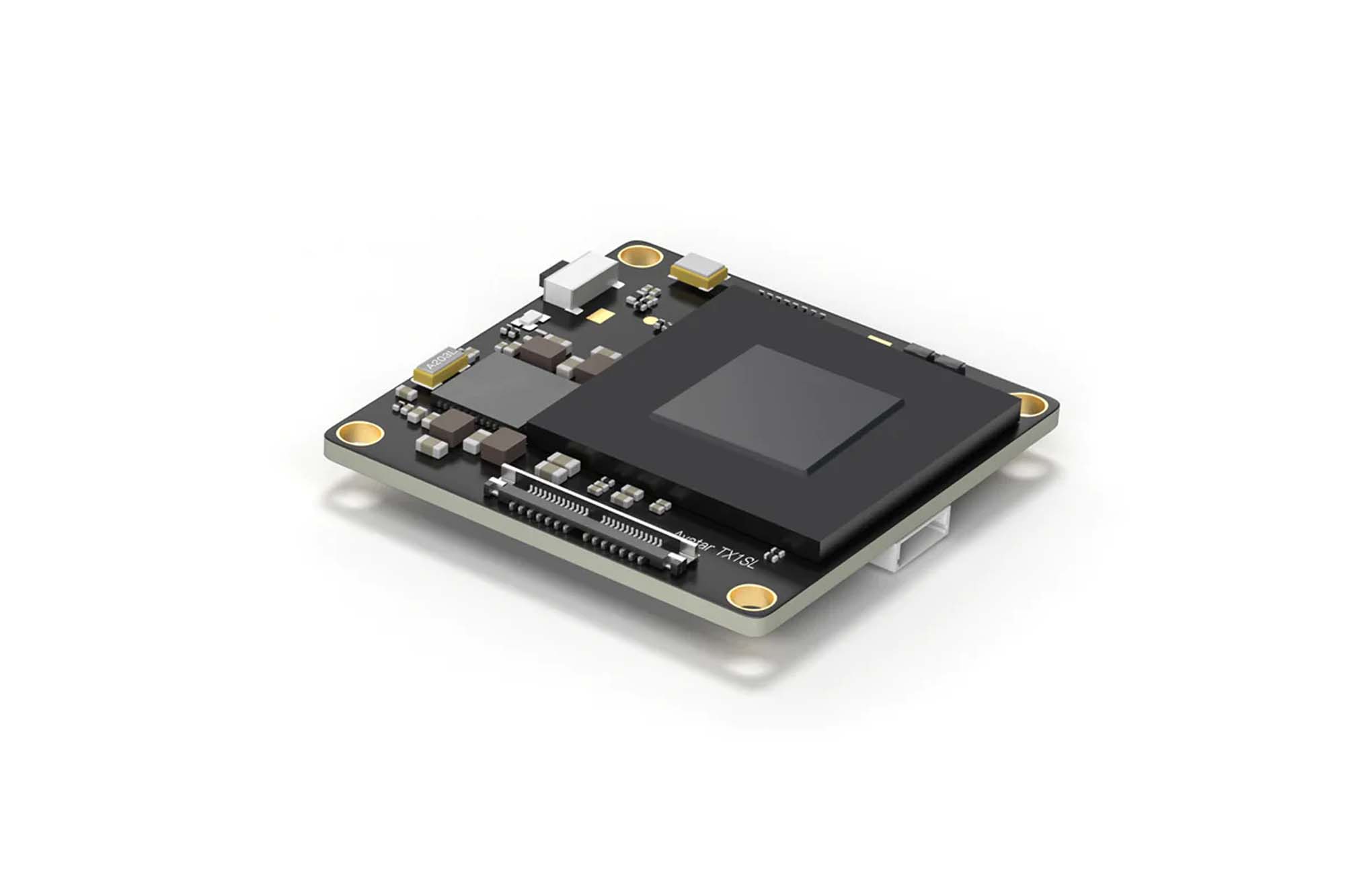

The kit also includes the Avatar Mini 1S VTX, which has a slimmed down design and weighs in at only 8.5g, making it 3.1g lighter than the original 1S VTX. It uses a whip antenna instead of a circular polarised antenna, and has a communication frequency of 5.725-5.850GHz. The transmitter power is FCC:<25.5dBm, CE:<14dBm, SRRC:<20dBm, and MIC:<25dBm. The I/O interface is JST1.06(Power in)JST1.04(USB) and the dimensions are 30306.5mm.



Specification

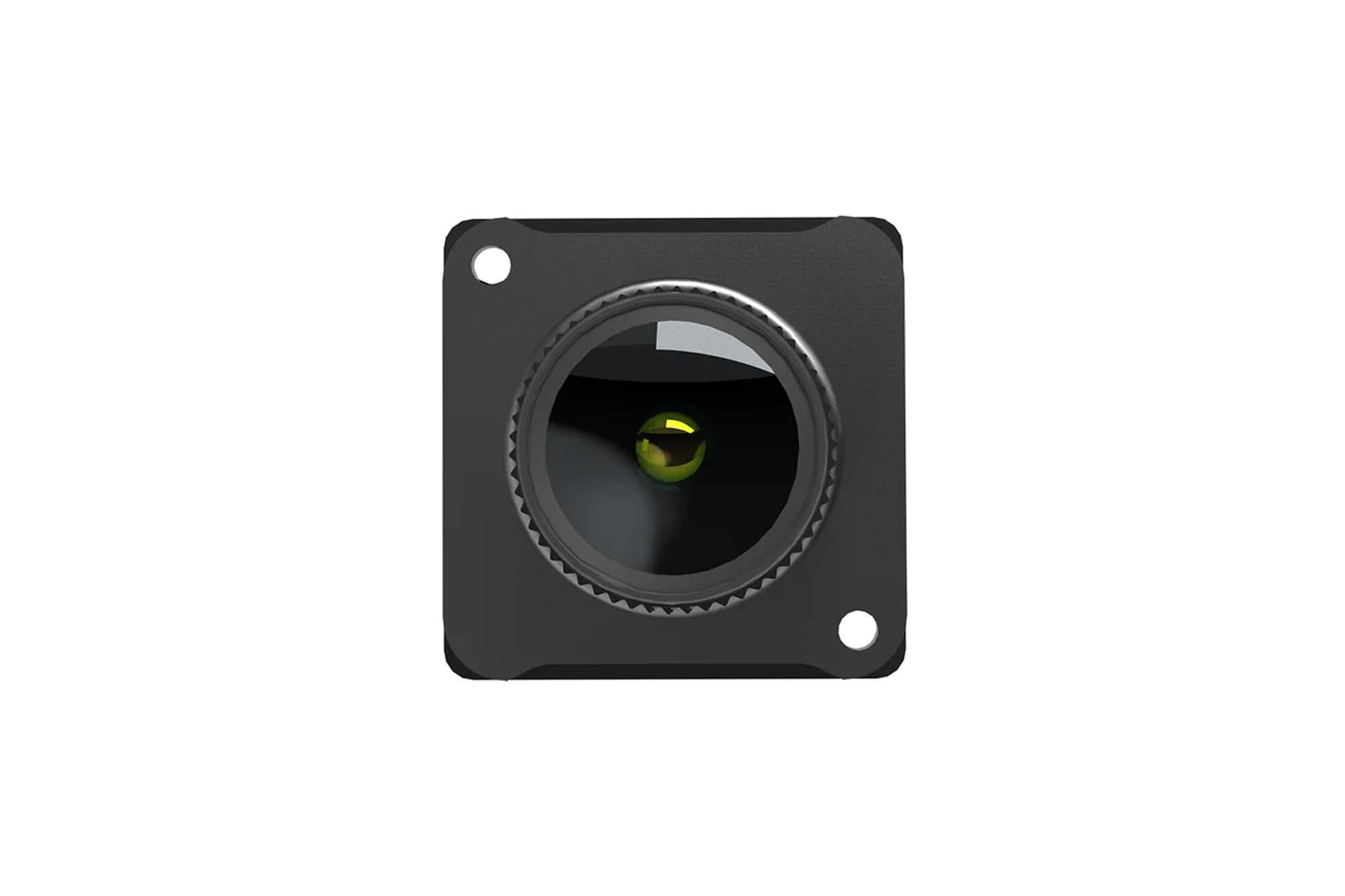

Camera
Model    Avatar lite camera
Image Sensor  1/2.7”1nch
Resolution   1080P/60fps,720P/120fps,720P/60fps
Ratio       16/9  4/3
Lens  2.1mm
FOV     170°
Aperture     F2.0
Shutter Rolling  Rolling shutter
Min.Illumination   0.001Lux
Weight  1.8g
Dimensions  14*14*16mm
VTX
Model Avatar mini 1s module
Communication Frequency 5.725-5.850GHz
Transmitter Power (EIRP) FCC:<25.5dBm; CE:<14dBm;
SRRC:<20dBm; MIC:<25dBm
I/O Interface JST1.0*6(Power in)JST0.8*4(USB)

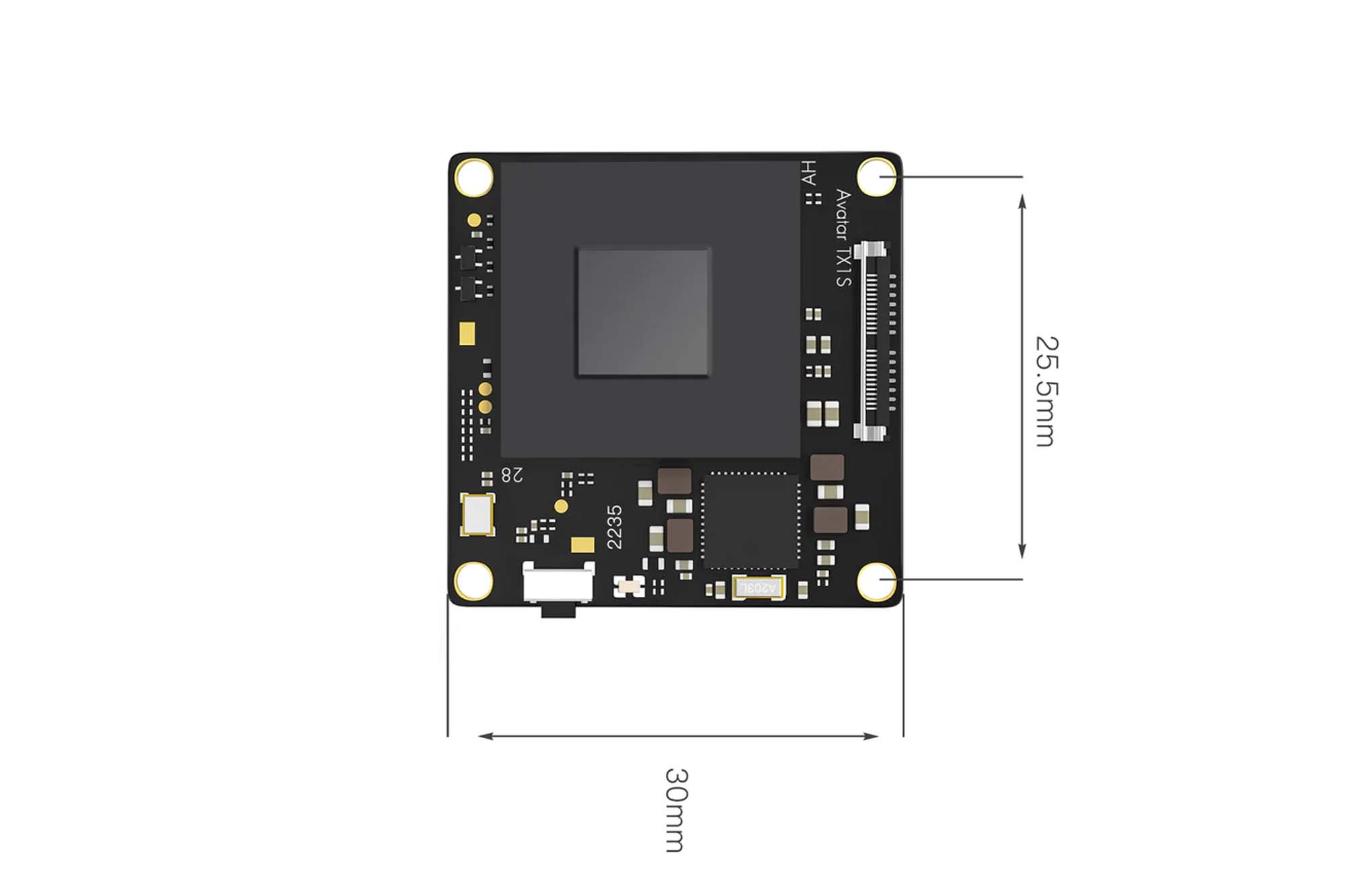

Mounting Holes 25.5*25.5mm
Dimensions 30*30*6.5mm
Storage 8G (V2) / 32G(V3)
Recording 1080p/720p
Weight 6.8g
Operating Temperature -20-40℃
Channels 8
Wide Power Input 3.1V-5V(V2) / 3.1-13V(V3)
Supported FC System Betaflight; Inav; Fettec; Kiss; ArduPliot
OSD Canvas mode
Bitrate 25mbps 50mbps
Latency Average delay 22ms
Antenna IPEX
1s lite antenna
Polarization  Linear
Frequency range 5600-5900MHz
Gain 1.6 dbi
VSWR ≤1.5
Input Impedance 50Ω
Interface IPEX-1
Size R 5mm,L 70mm
Weight 0.5g



Includes

X1 Avatar Mini 1S lite KIT
X1 4 Pin USB Cable
X1 4 Pin Power Cable
X4 1.4×8mm Screws
X2 1.4×10mm Screws
X4 M2 Anti-vibration Rubber Dampers *6mm

Product Details

Product TypeVTX
Shipping Weight38 grams
VendorCaddx
