Description

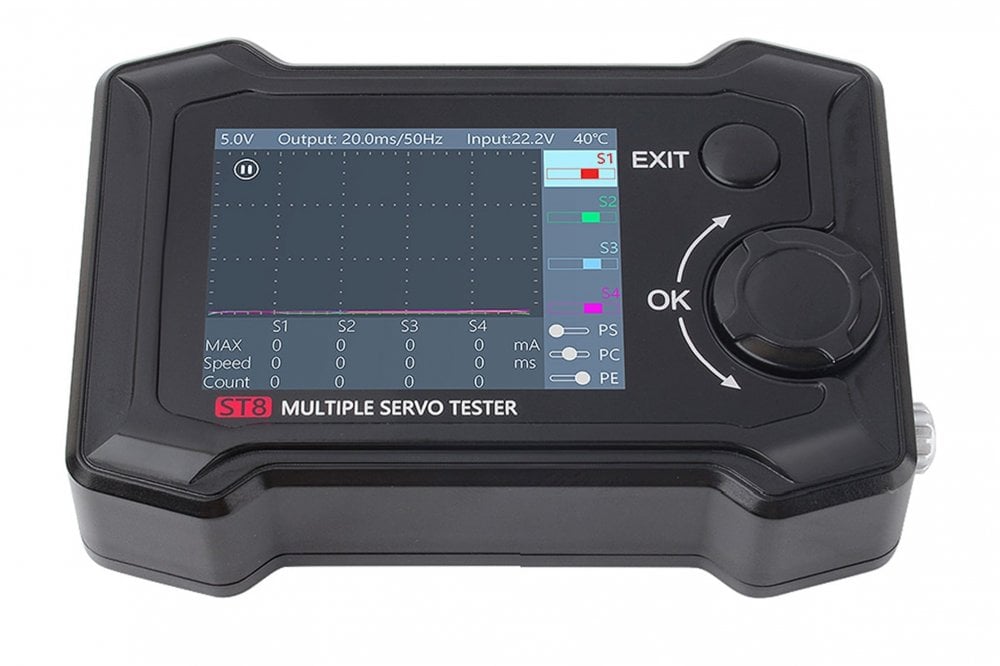

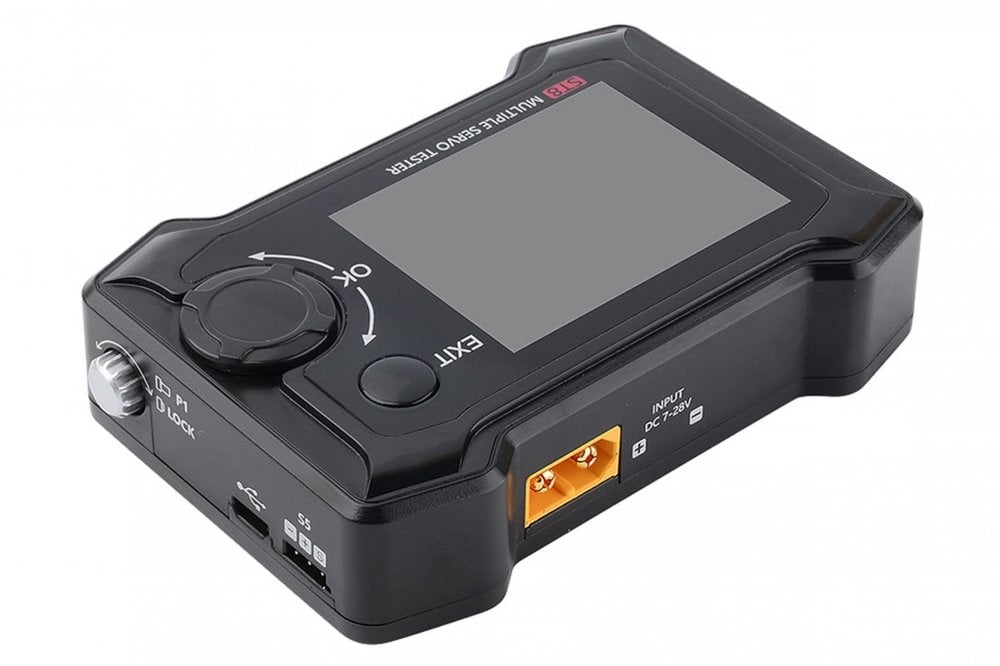

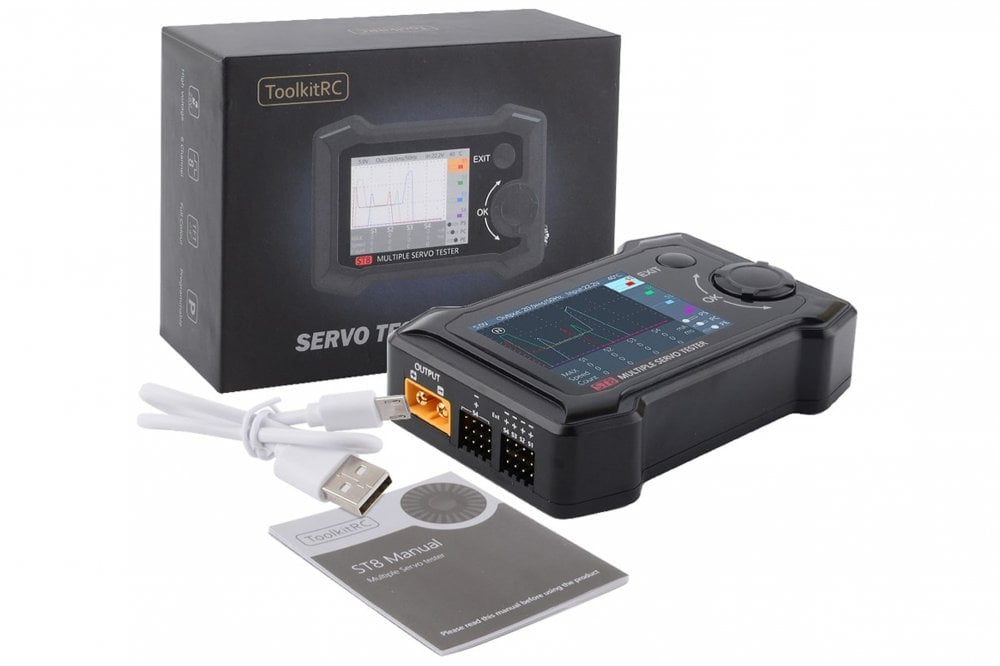

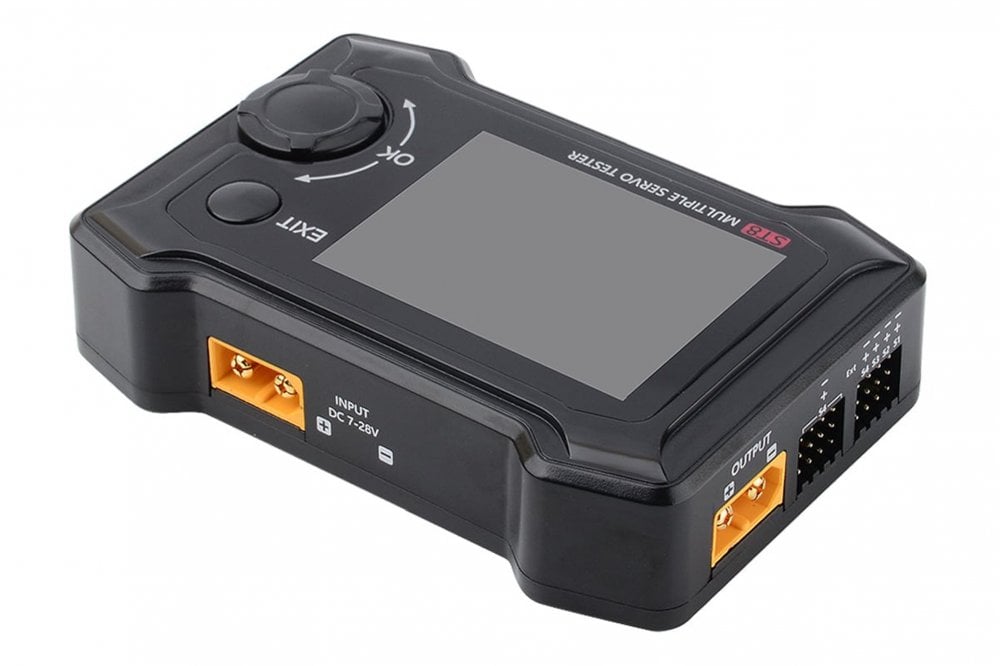

ToolkitRC ST8 is a data analyzer which is capable to test the voltage, power, current, speed and signal data of the servo. With 4-way independent programmable signal, 8 channel signal output, the precision is accurate to 1us. 4-way independent current date collection, and displayed by graph. Support to test multiple date, speed, liner data, steps,etc. Support multiple signal type, PWM/PPM/SBUS,the precision is accurate to 1us. Input Voltage is higher to 28V, also suitable to test HV servo. The max load is upto 100W. Multi-language system, can change the language by yourself. USB firmware update, easy to operate.
Specification
- Input voltage: 7-28V@MAX 10A
- Main output port: 5.0V-28.0V@MAX 10A
- Signal port: 5.0V-8.4V@MAX 4A/S1-S4
- Output voltage: 5.0V-8.4V@MAX 4A/S4 Ext.
- Output signal: 100us-2900us@33-1000Hz @S1-S4 PWM 500us-2500us@S5 PPM 8CH@S5 SBUS 16CH@S5
- P1 rotation range: 1000us-2000us@P1
- MicroUSB: Upgrade @ USB3.0
- LCD display: 2.4 inch TFT RGB 320*240 resolution
- Product Size: 99mm*68mm*26mm
- Weight: 140g
- Packing Size: 105mm*80mm*45mm
- Weight: 160g
Product Details
| Product Type | Charger |
| Shipping Weight | 200 grams |
| Vendor | ToolkitRC |
