Due to the permanent and potentially destructive nature of soldering and connecting to other devices in general, always remember to test electronics first, before attempting to solder to them or connect any accessories.
For a flight controller, this can always be achieved by connecting to the board via USB and verifying that everything is working via the configurator. To test an ESC, you can power up the board via crocodile clips. We sell crocodile clips here for this very purpose.
Please see the Items requiring soldering section of our refund policy for more information.
Reward Points ⭐️

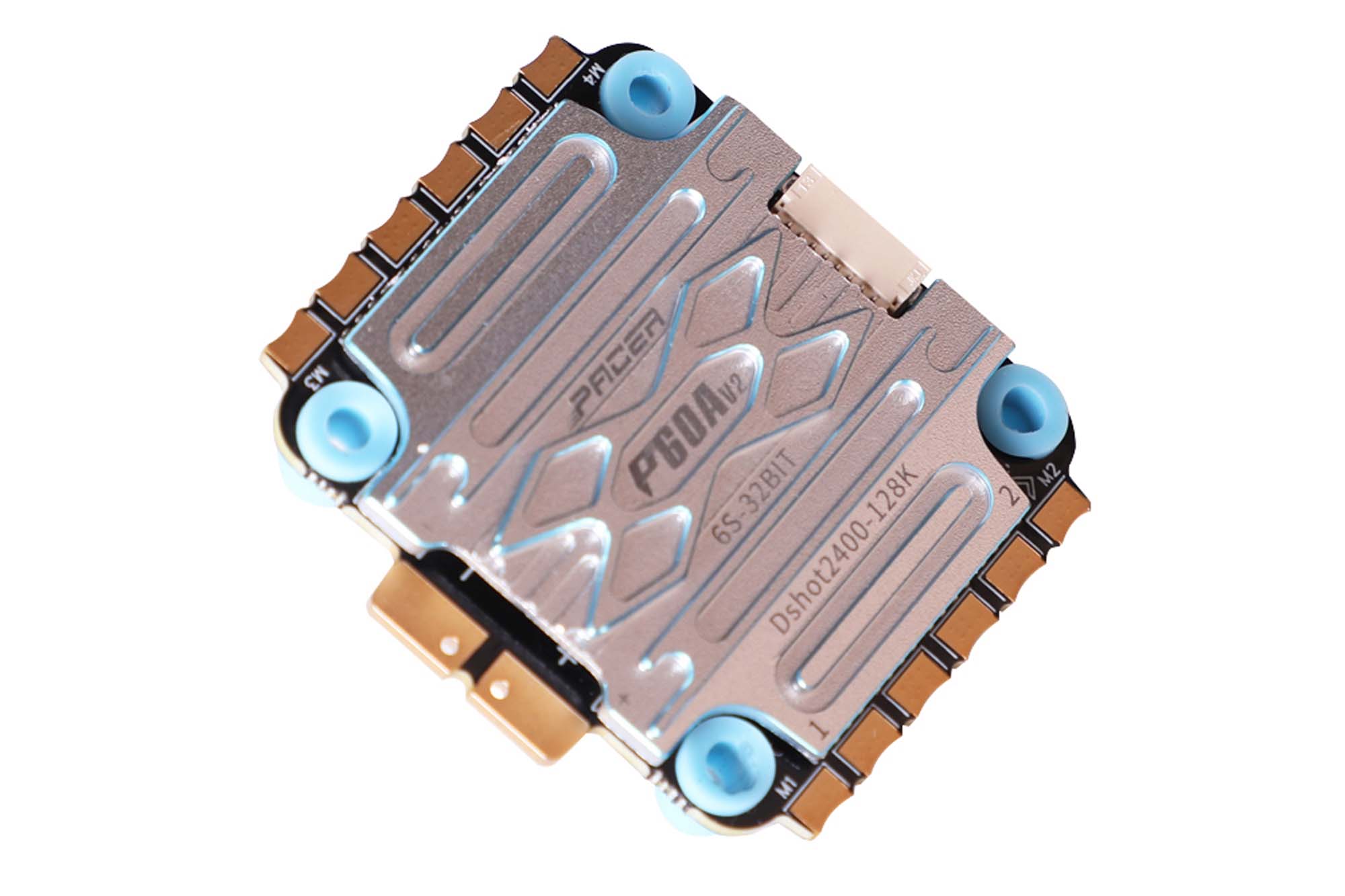

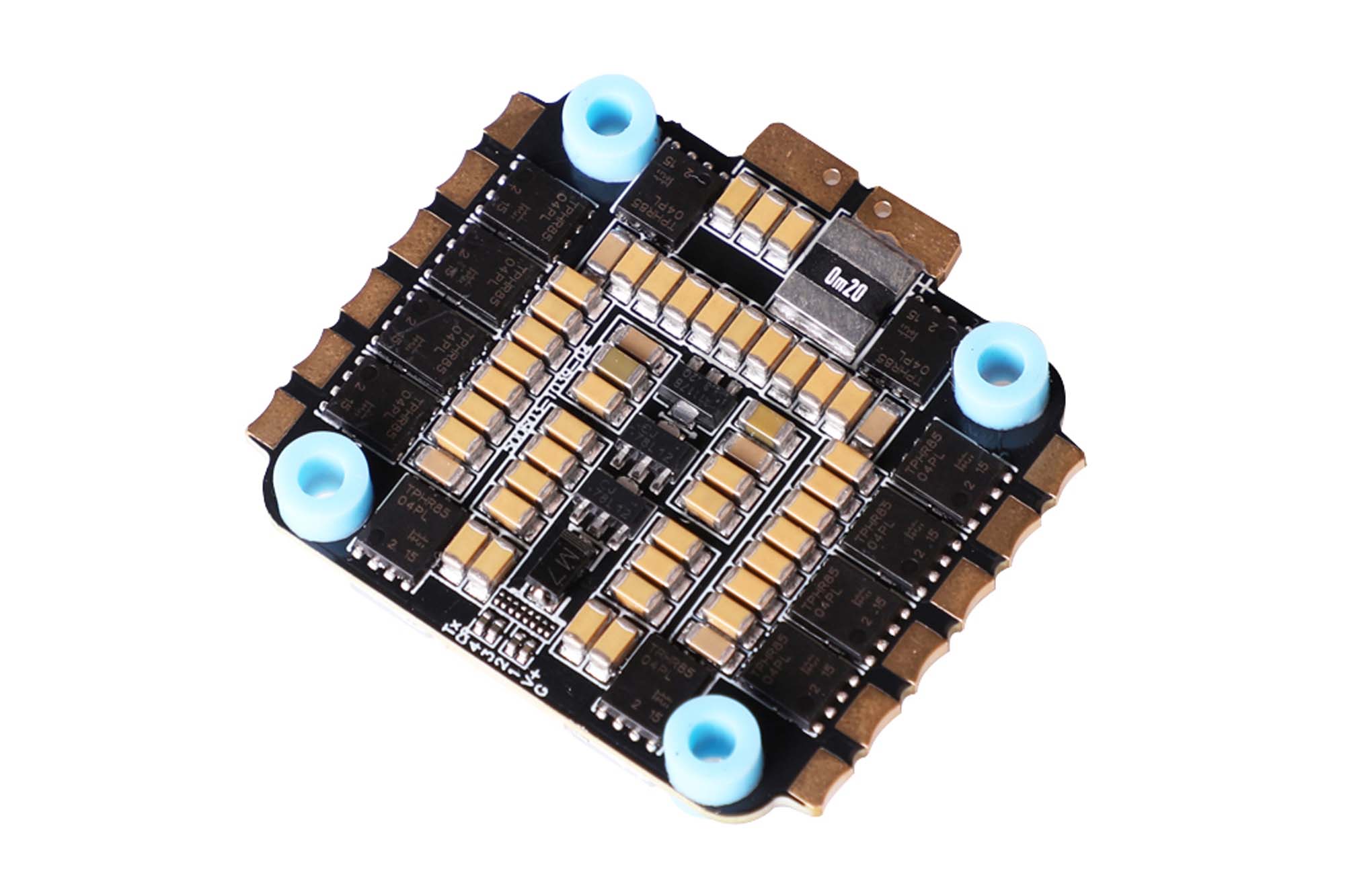

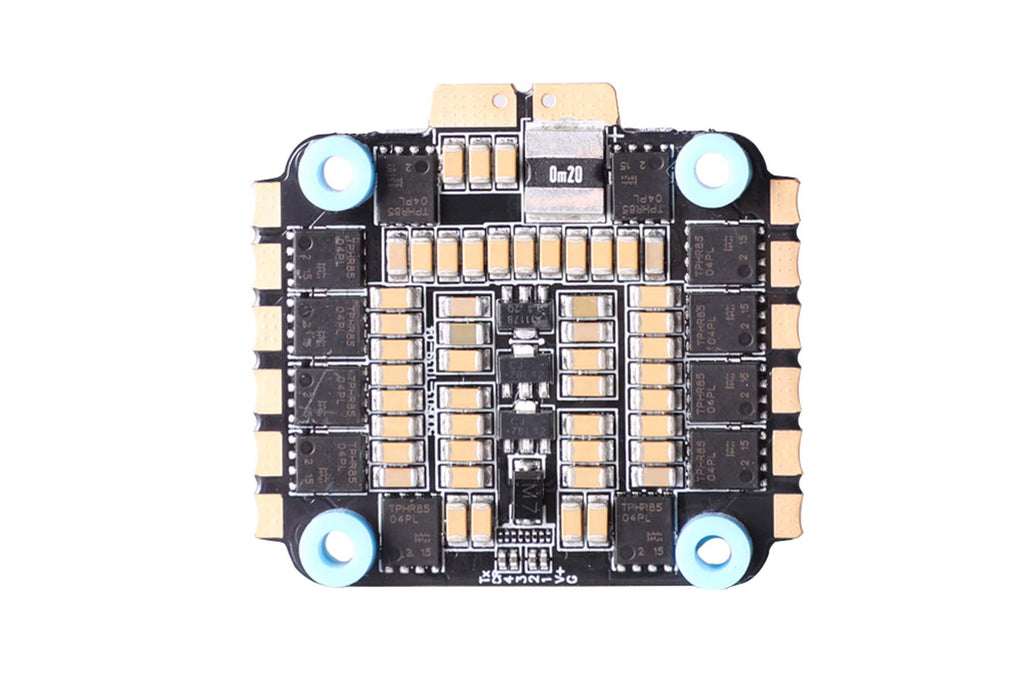

The T-Motor Pacer P60A V2 4in1 ESC is a new spec 4in1 ESC supporting DSHOT2400. The P60A supports adjustable PWM frequencies from 16KHz to 128KHz and features a dual colour fin-stripe heat sink for rapid heat dissipation.
- Current: 60A
- Peak Current: 70A (10s)
- Lipo: 3-6S
- Weight: 22g
- Size 41x45x7.2mm
- Mounting Hole: 30.5x30.5mm, M3
- Parameter: BLHeliSuite32
- ESC Firmware: Tmotor_32Bit
