Due to the permanent and potentially destructive nature of soldering and connecting to other devices in general, always remember to test electronics first, before attempting to solder to them or connect any accessories.
For a flight controller, this can always be achieved by connecting to the board via USB and verifying that everything is working via the configurator. To test an ESC, you can power up the board via crocodile clips. We sell crocodile clips here for this very purpose.
Please see the Items requiring soldering section of our refund policy for more information.
Reward Points ⭐️

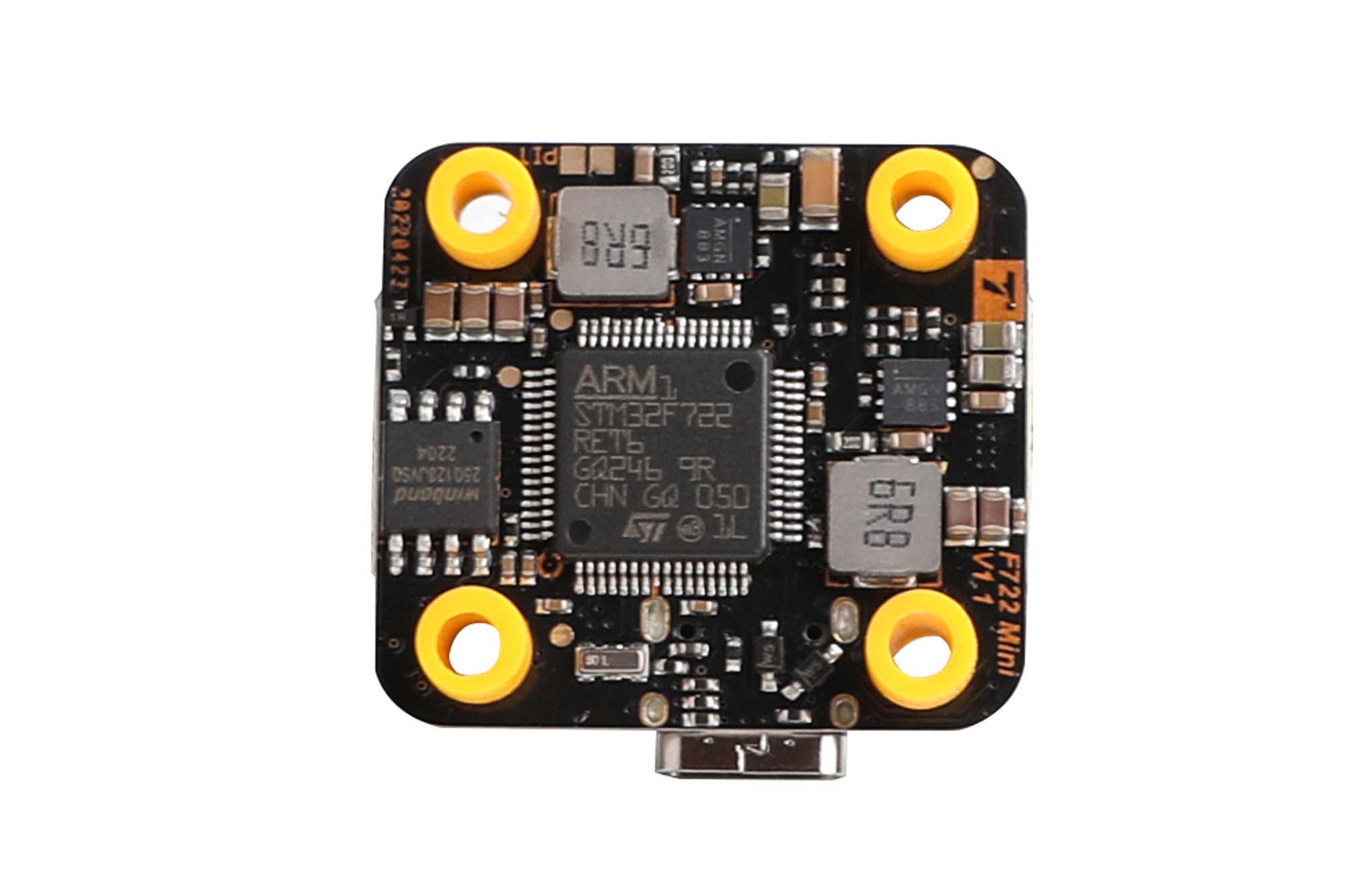

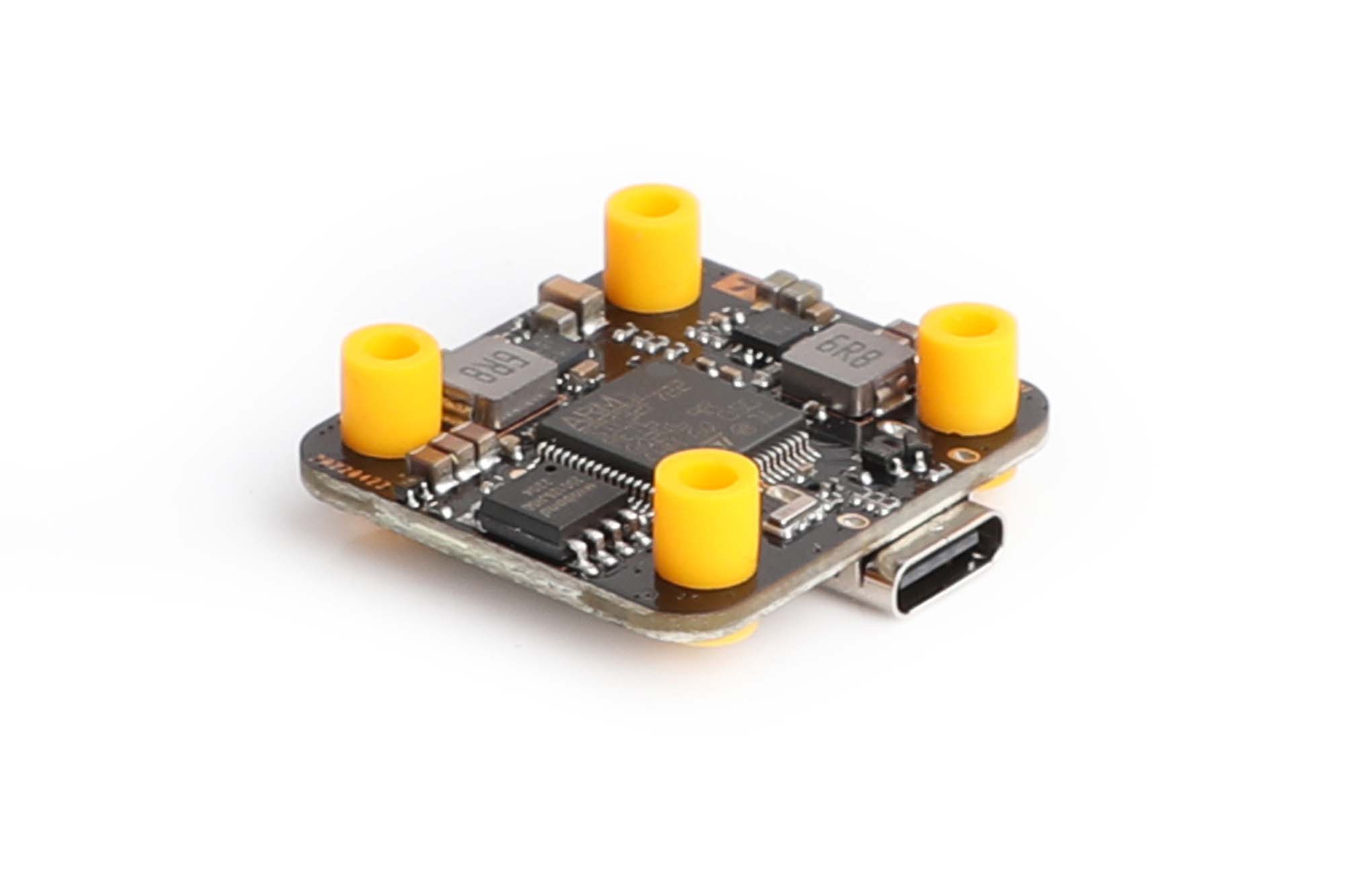

This is a 20×20 mountable flight controller form T-motor that packs alot into a such a small form factor. It is plug and play compatible with the DJI HD FPV system, but still has an OSD chip and a remote VTX power switch built in. So essentially you can use this flight controller for just about any company build you want.
- MCU: STM32F722 Processor
- Gyro: BMI270
- Memory: 16M
- Input Voltage: 3-6S
- BEC: 5V/3A, 10V/2A
- Mounting Holes: 20mm x 20mm
- Weight: 5.1g
- Analogue OSD supported with VTX pit switch
