Description

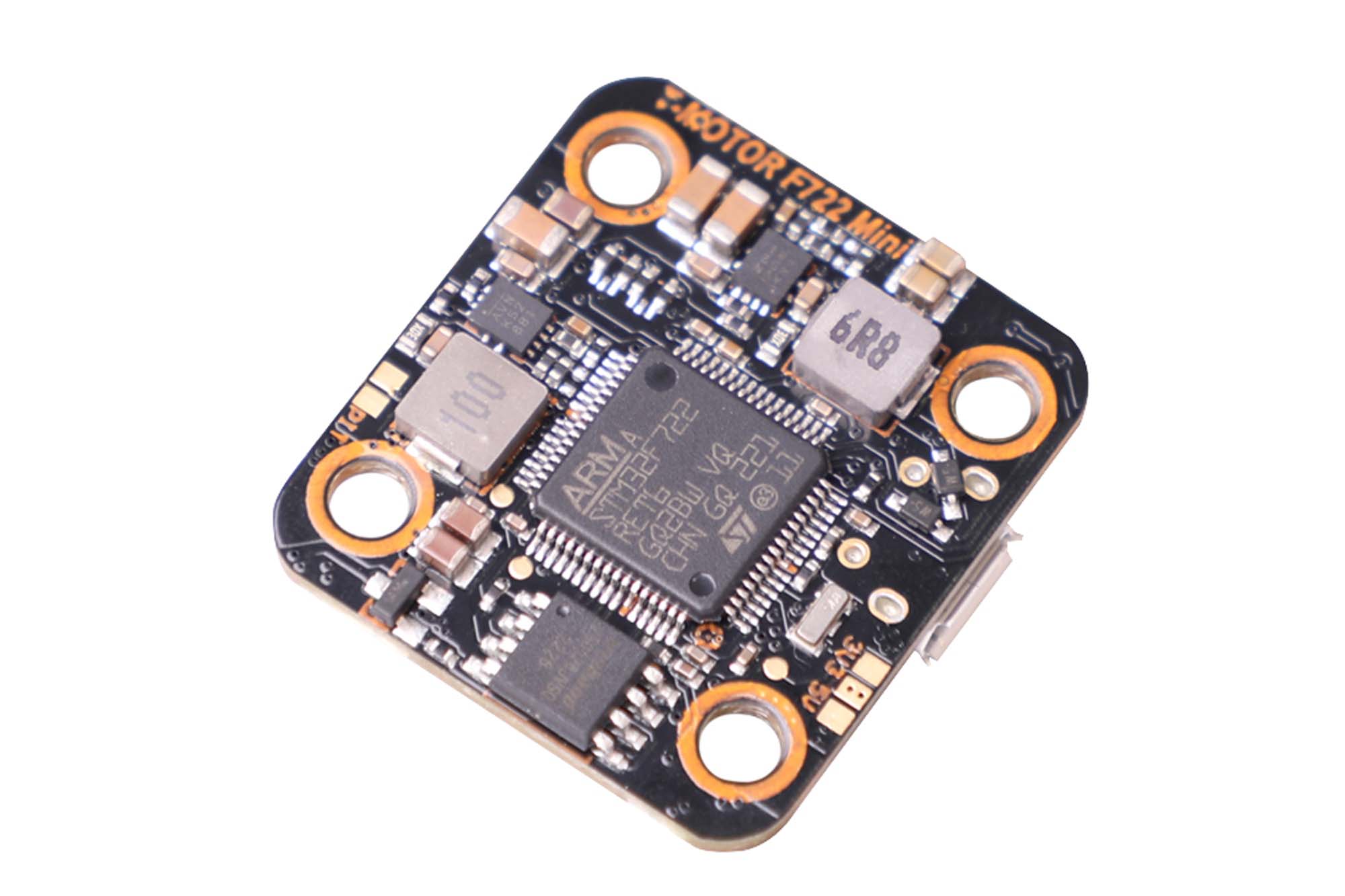

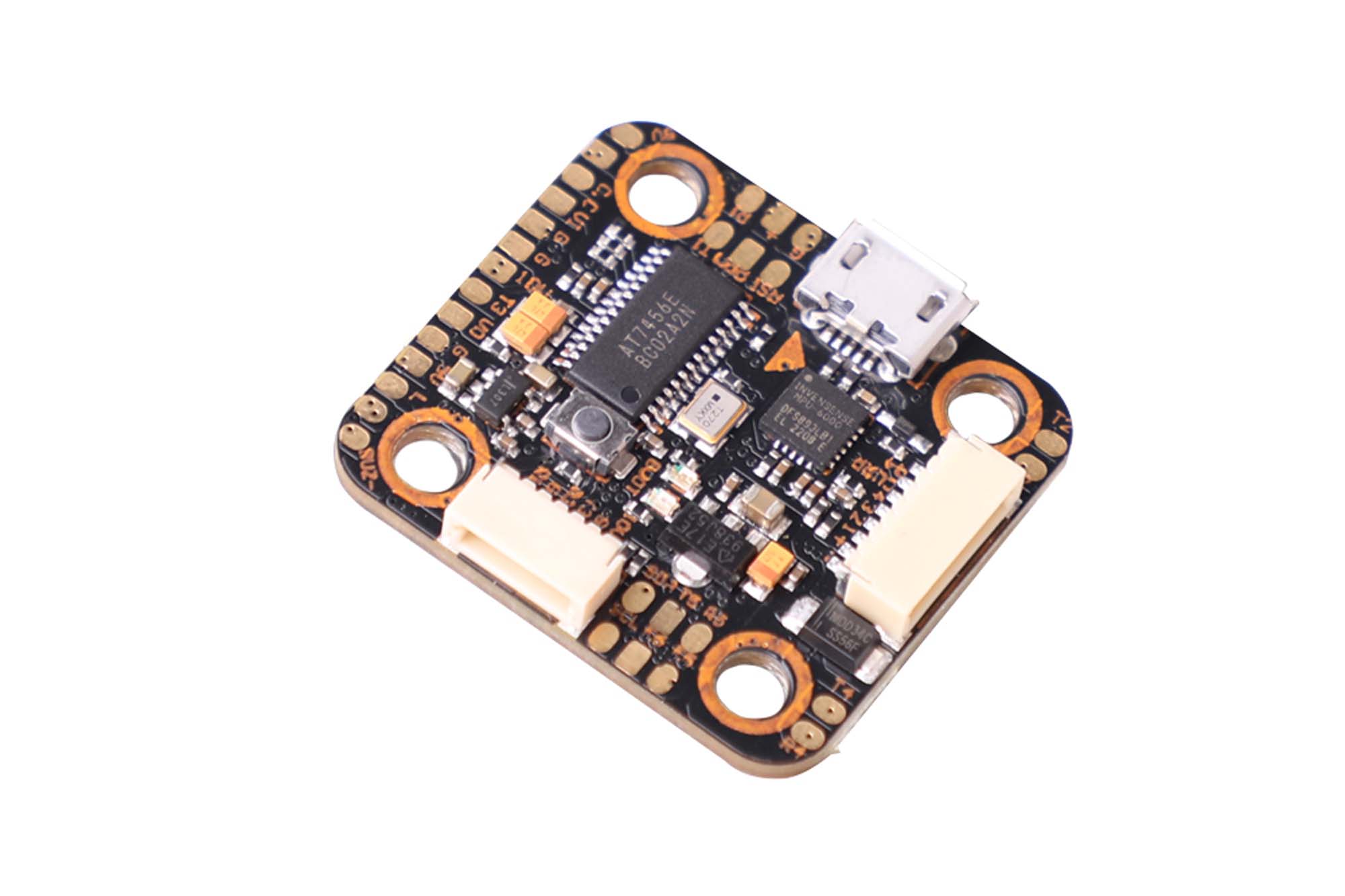

The T-Motor Mini F7 HD Flight Controller is a high specification 20mm mounting hole board featured a fast F722 processor and MPU6000 gyro. The flight controller integrates a dual BEC providing both 5V and 10V which can be used by the DJI digital video system or a traditional analogue VTX. For analogue users the flight controller features an integrated pit switch function that enables you to power down/up the VTX when on the ground. The flight controller pairs well with the T-motor F45A mini 4in1 ESC.
Specifications:
- MCU: STM32F722 Processor
- Gyro: MPU6000
- Memory: 16M
- Input Voltage: 3-6S
- BEC: 5V/3A, 10V/2A
- Mounting Holes: 20mm x 20mm
- Weight: 5.1g
- Analogue OSD supported with VTX pit switch
Includes:
T-Motor Mini F7 HD Flight Controller (MPU6000)
Accessories
Product Details
| Product Type | Flight Controller |
| Shipping Weight | 22 grams |
| Vendor | T-Motor |
| Input voltage | 36.0 |
