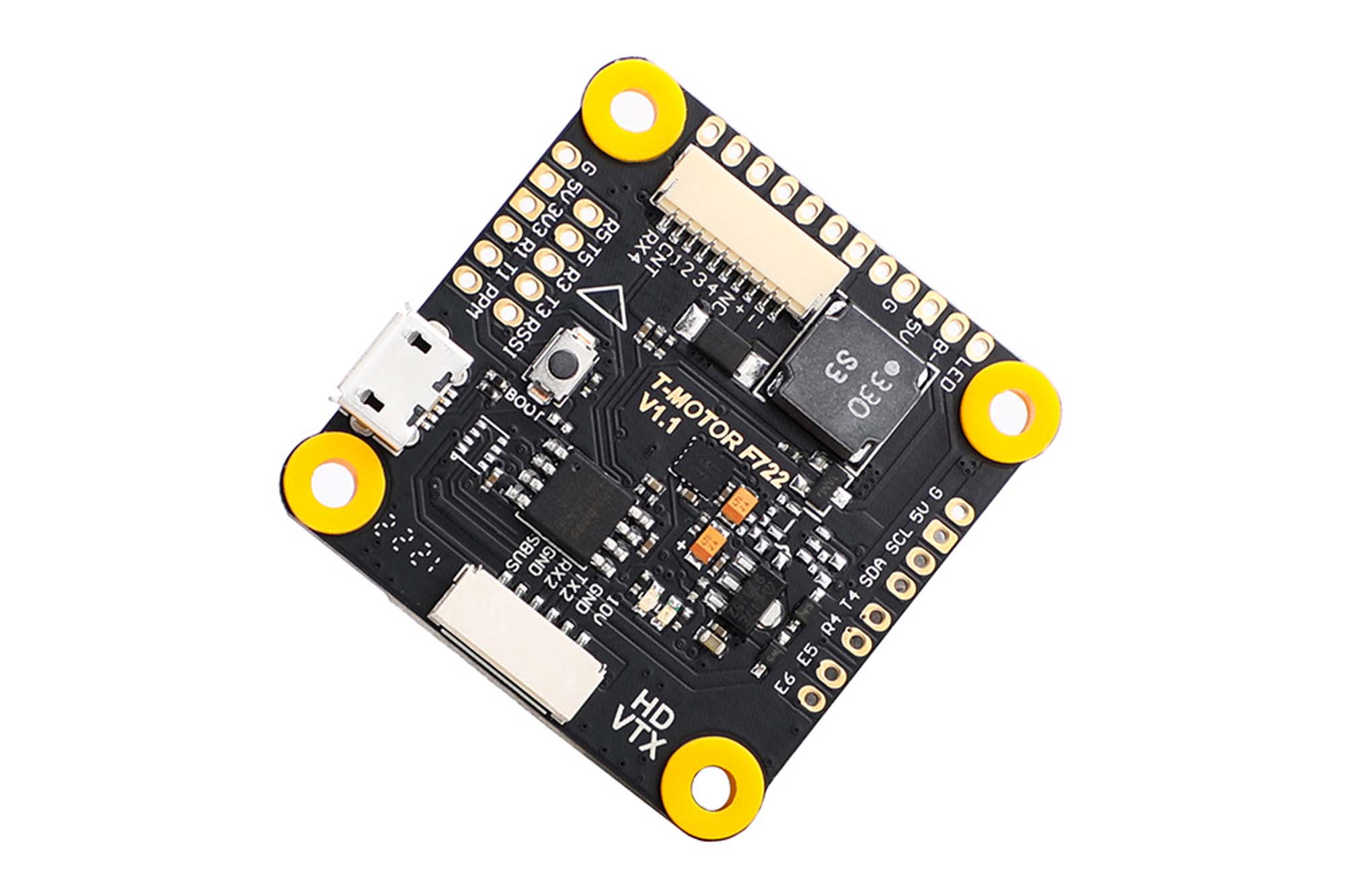

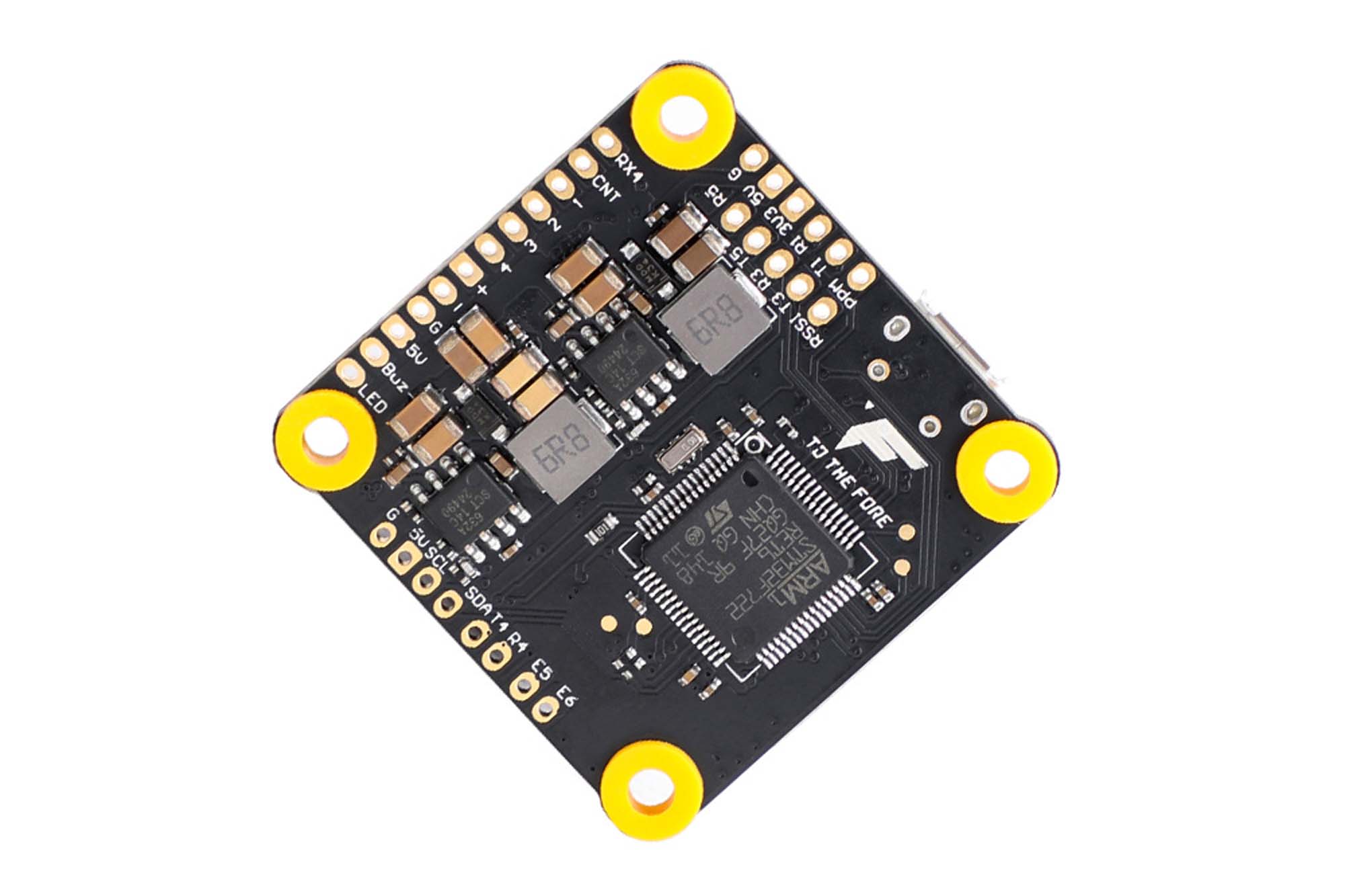

The HD version of the T-Motor F7 Flight Controller is specially designed to work directly with the DJI HD FPV System without soldering. Plug-and-play with the DJI HD System has never been easier! This flight controller doesn't support analogue OSD.
- MCU: STMF722RET6
- Gyro: BMI270
- Memory: 16M
- Input Voltage: 12v-25.2v (3-6S)
- BEC: 5V/2A 10A/2A VTX/DJI HD system
- Dimensions: 37mm x 37mm
- Mounting Holes: 30.5mm x 30.5mm
- Weight: 8.4g
- Firmware Target: TMOTORF7 (Betaflight)
