Description
Description

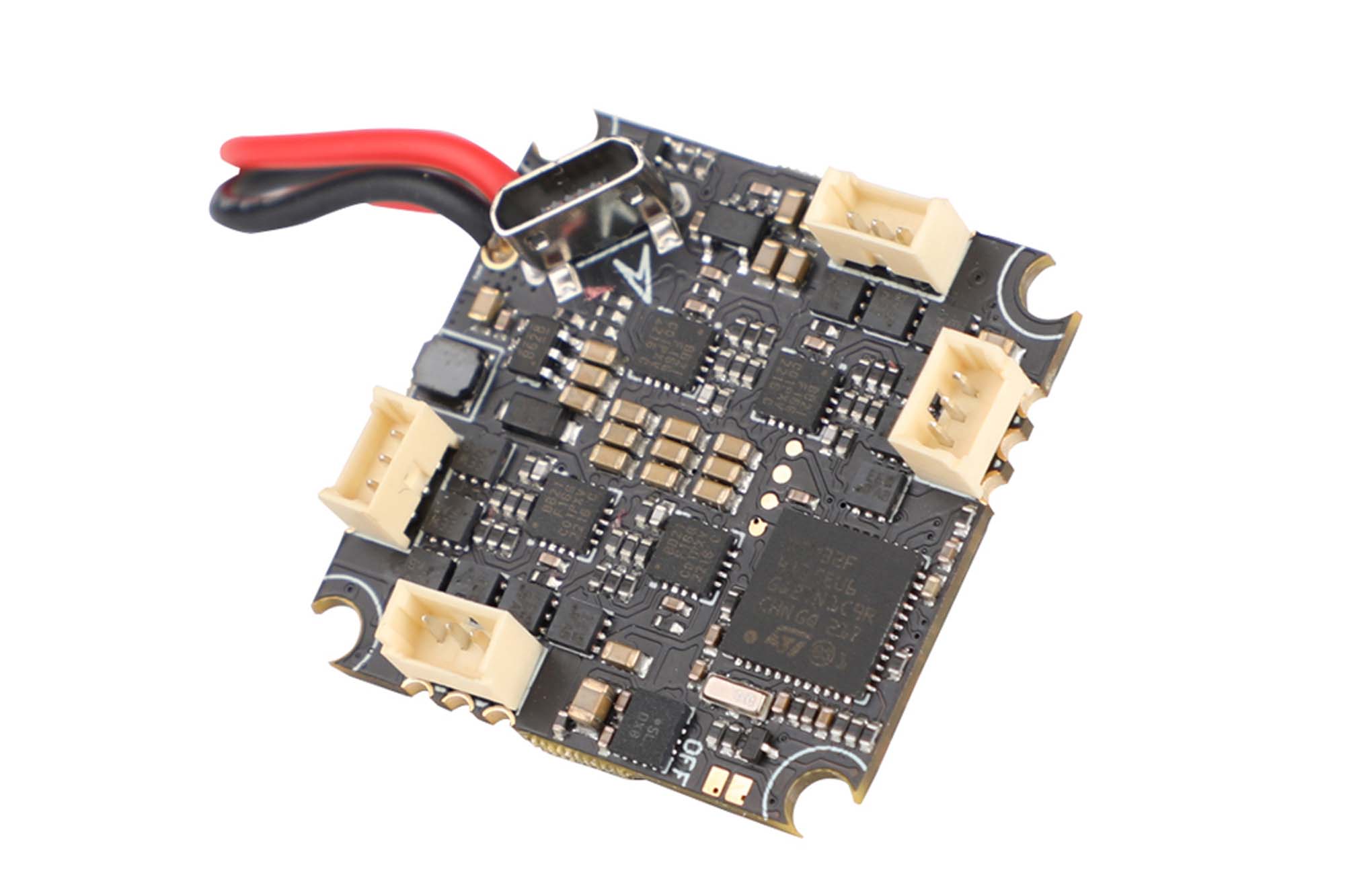

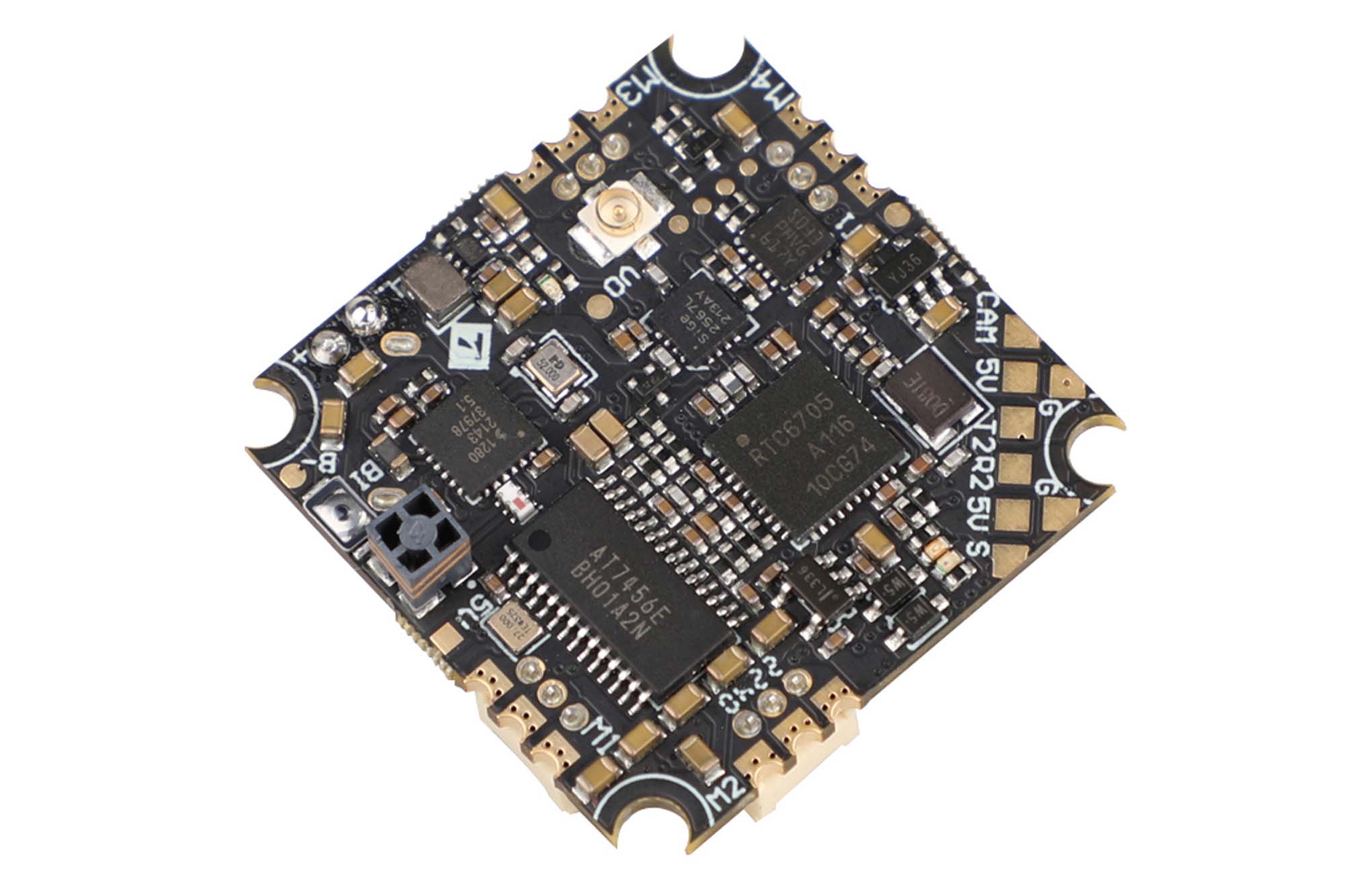

The T-Motor F4 13A 1S AIO board is a compact and lightweight electronic speed control (ESC) board that is perfect for building small drones. It is designed to support a single cell input voltage of 1S and can handle a continuous current of 6A and a peak current of 7A.
Specifications
- Input Voltage: 1S
- Continuous Current: 6A
- Peak Current: 7A
- ESC Firmware: BlueJay
- MCU: STM32F411
- Gyro: BMI270
- Receiver: SPI ELRS 2.4GHz V2
- VTX: 48CH 50mW Smartaudio 1.0
- Size: 29.5×29.5mm
- Weight: 6.7g
- Mounting Hole: 25.5×25.5mm (M2 Holes)
Product Details
| Product Type | ESC |
| Shipping Weight | 23 grams |
| Vendor | T-Motor |
