Description
Specification

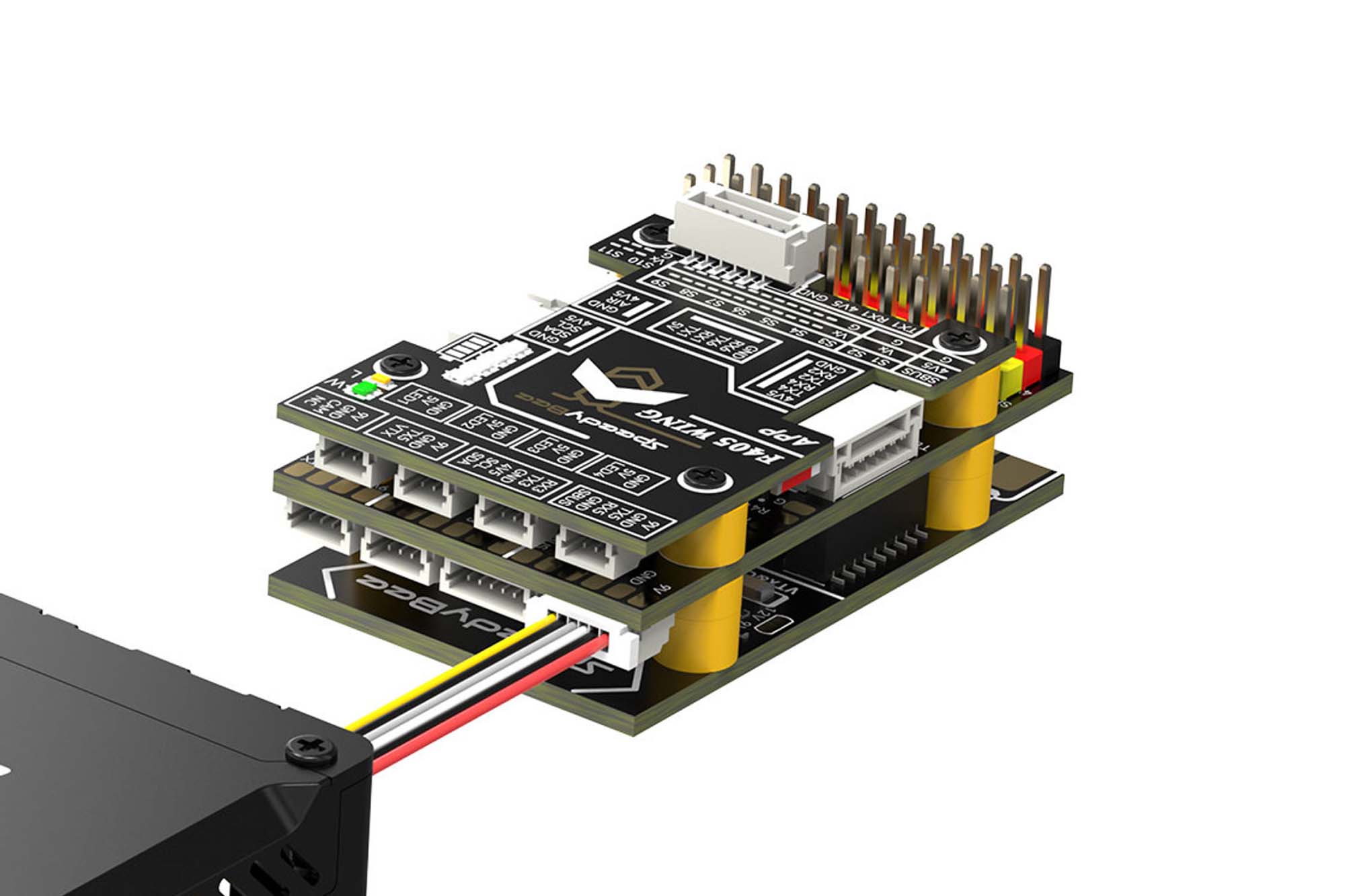

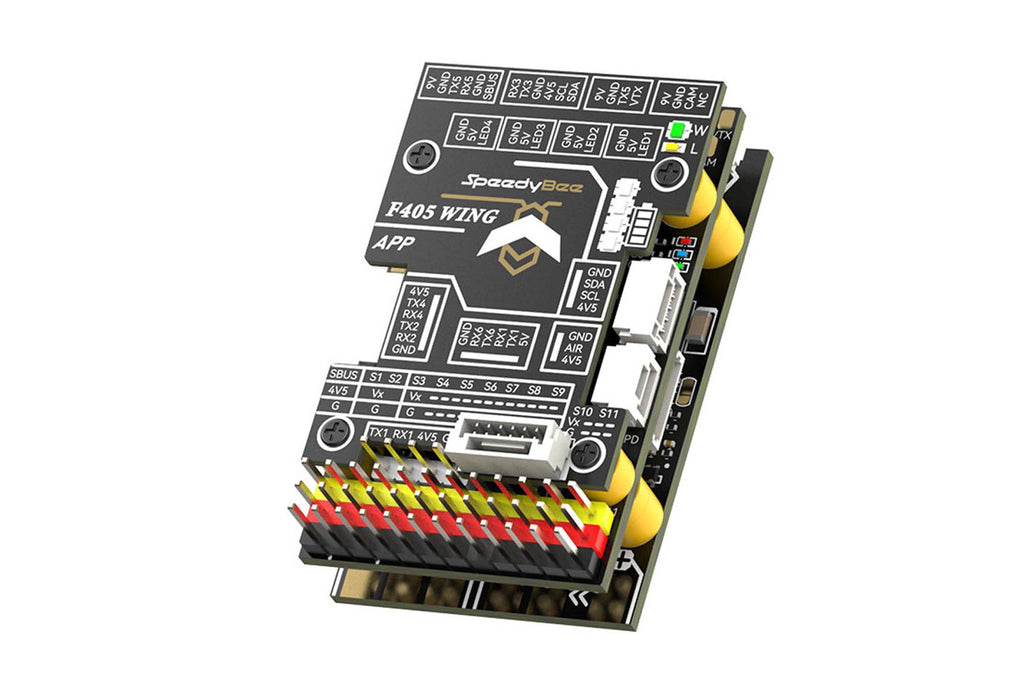

| Product Name | SpeedyBee F405 WING FC board |
| MCU | STM32F405,168MHz,1MB Flash |
| IMU(Gyro&Accelerometer) | ICM-42688-P |
| Barometer | SPL006-001 |
| OSD Chip | AT7456E |
| Blackbox | MicroSD Card Slot |
| UART | 6 sets(USART1, USART2, USART3, UART4, UART5, UART6(Dedicated for Wireless board Telemetry connection)) |
| I2C | 1x Used for magnetometer, digital airspeed sensor |
| ADC | 4x (VBAT, Current, RSSI, Analog AirSpeed) |
| PWM | 12x (11+1“LED”pad) |

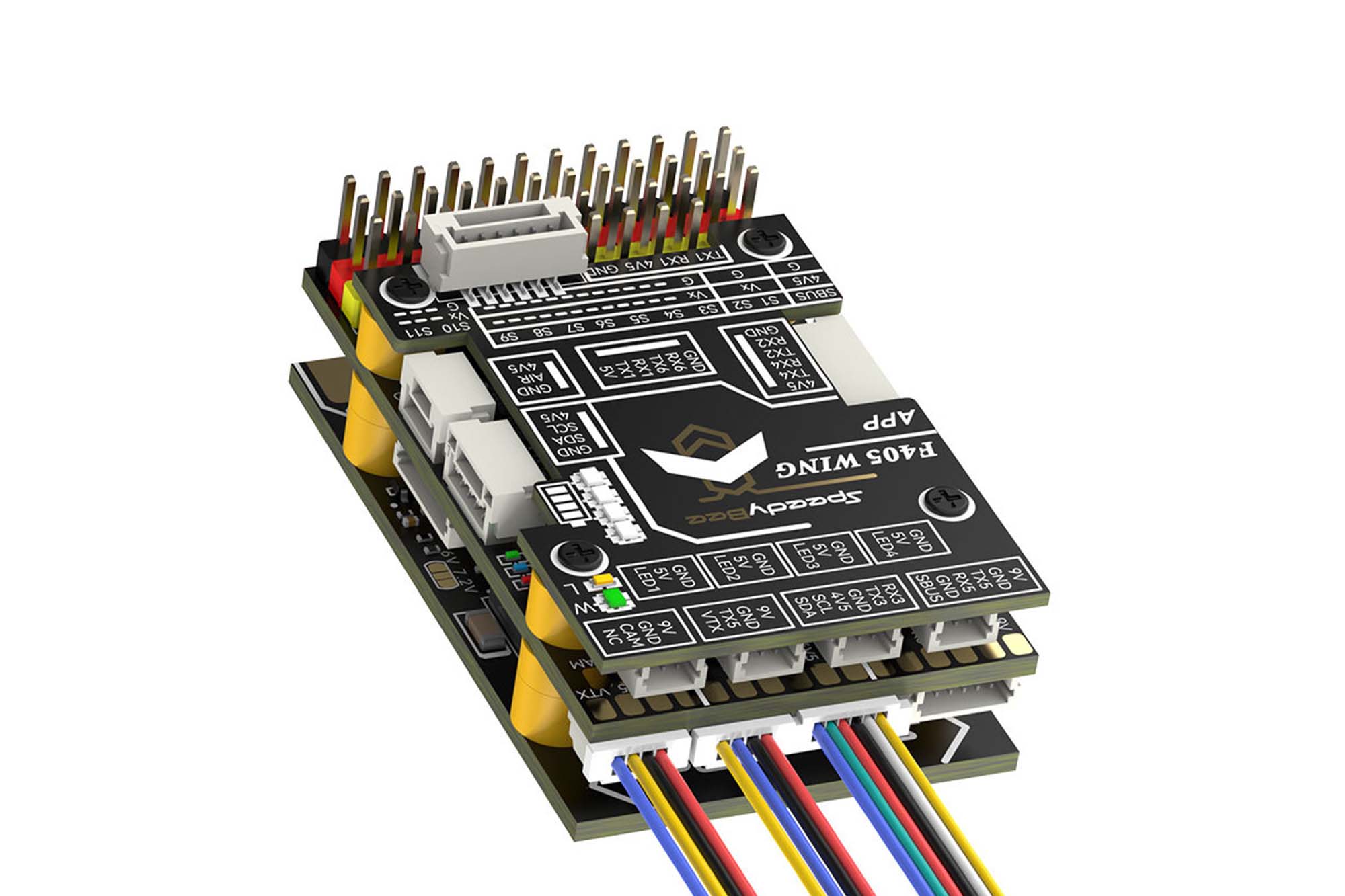

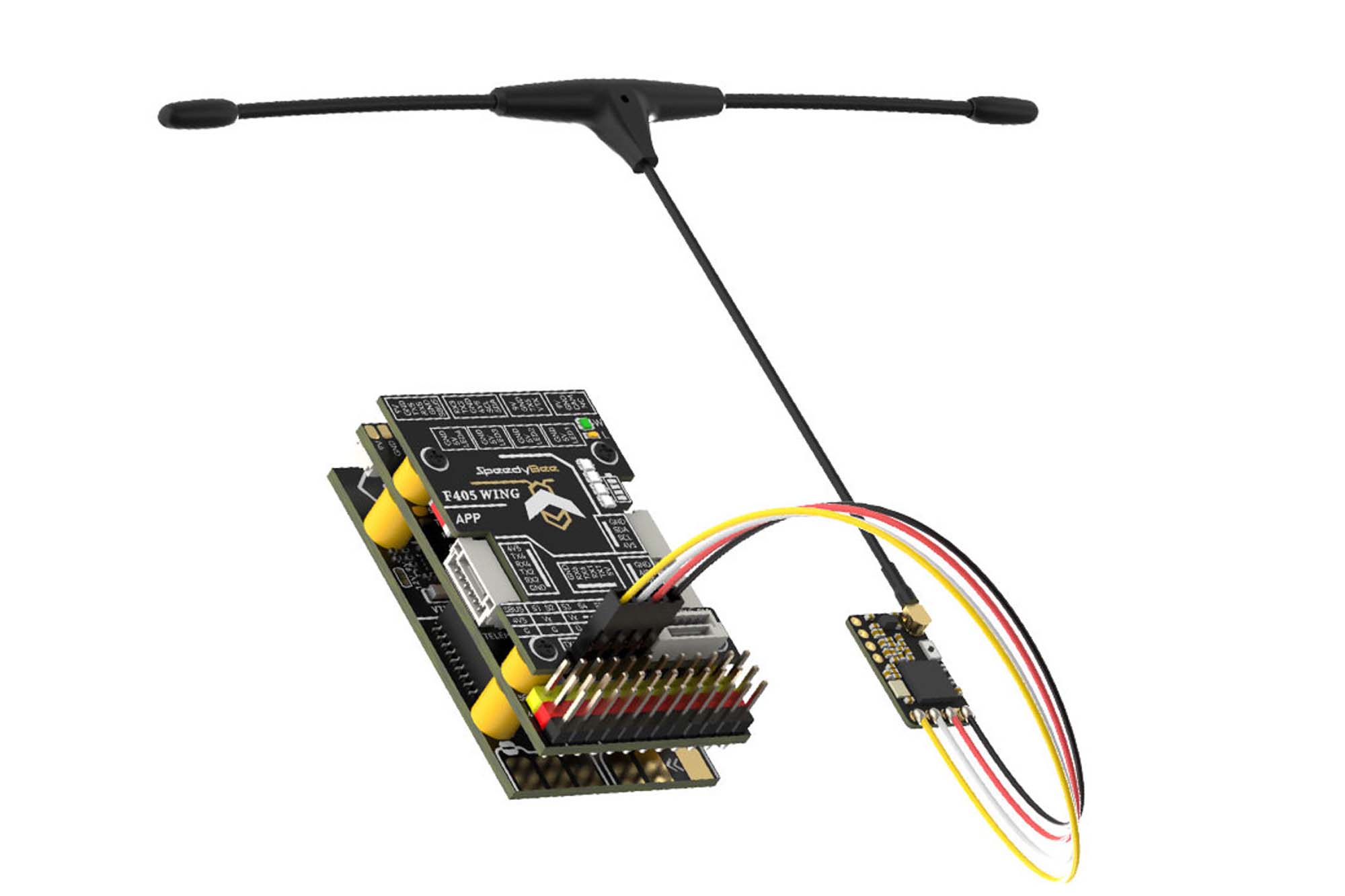

| ELRS/CRSF receiver | Supported,connected to UART1 |
| SBUS | Built in inverter for SBUS input (UART2-RX) |
| LED | 3x LEDs for FC STATUS (Blue, Green) and 3.3V indicator(Red) 1x RGB |
| RSSI | Supported,Named as RS . |
| Supported FC Firmware | INAV:SpeedyBeeF405WING(default)ArduPilot: SpeedyBeeF405WING |
| Weight | 8.9g |

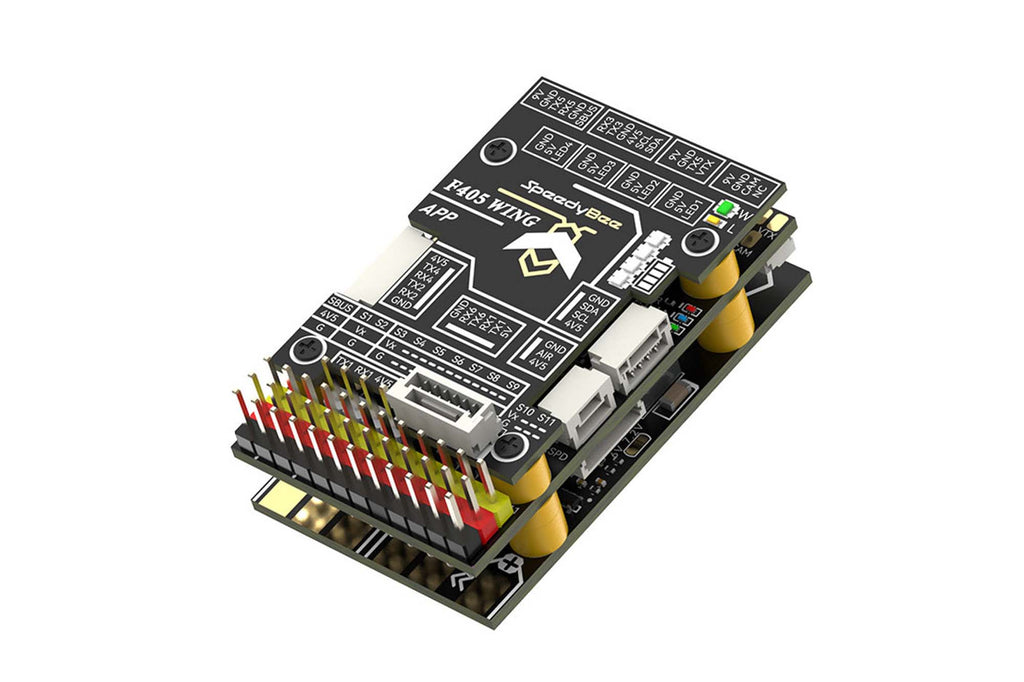

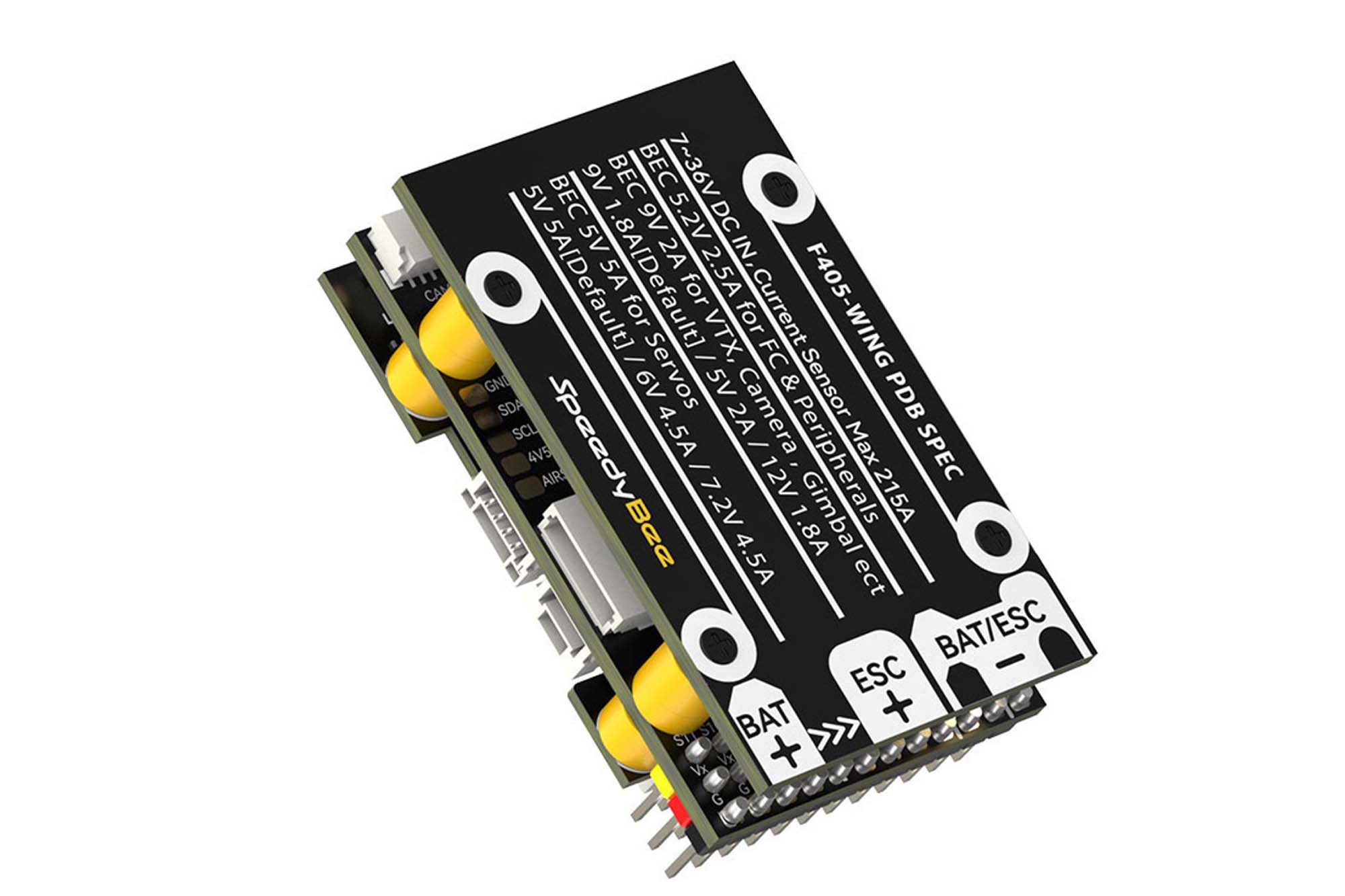

| Product Name | SpeedyBee F405 WING PDB board |
| Input voltage range | 7~36V (2~6S LiPo) |
| Battery Voltage Sensor | Connect to FC board VBAT, 1K:10K (Scale 1100 in iNav, BATT_VOLT_MULT 11.0 in ArduPilot) |
| Battery Current Sensor | 90A continuous, 215A peak Connect to FC board Current (Scale 195 in iNav, 50 A/V in ArduPilot) |
| TVS Protective diode | Yes |
| FC BEC output | Output 5.2V +/- 0.1V DC Continuous current 2.4 Amps, 3A Peak Designed for FC, Receiver, GPS module, AirSpeed module, Telemetry module, WS2812 LED_Strip |
| VTX BEC output | Output 9V +/- 0.1V DC Continuous current 1.8 Amps, 2.3A Peak Voltage adjustable, 9V Default, 12V or 5V via jumper Designed for Analog Video Transmitter,Digital Video Transmitter, Camera. |
| Servo BEC output | Output 4.9V +/- 0.1V DC Continuous current 4.5 Amps, 5.5A Peak Voltage adjustable, 4.9V Default, 6V or 7.2V via jumper Designed for Servos. |
| Weight | 11.4g |
| Product Name | SpeedyBee F405 WING Wireless board |
| Wireless Configuration (long press BOOT button for 6 seconds to switch modes) | BLE mode, connect to Speedybee APP |
| Wi-Fi mode, connect to QGroundControl APP, Speedybee APP, MissionPlanner, etc. | |
| Classic Bluetooth SPP mode, connect to QGroundControl APP, MissionPlanner | |
| LED strip controller (short press BOOT button to switch effects, long press 2 seconds to switch modes) | 4x WS2812 LED strip connectors, adjustable colors and flashing modes |
| Max 5.2V 1.3A, supports around 70pcs 5050 WS2812 LED beads | |
| On-board battery level indicator | 4x RGB indicator LED for battery level display by number of lights |
| Weight | 4.2g |
Product Details
| Product Type | Flight Controller |
| Shipping Weight | 120 grams |
| Vendor | Speedybee |
