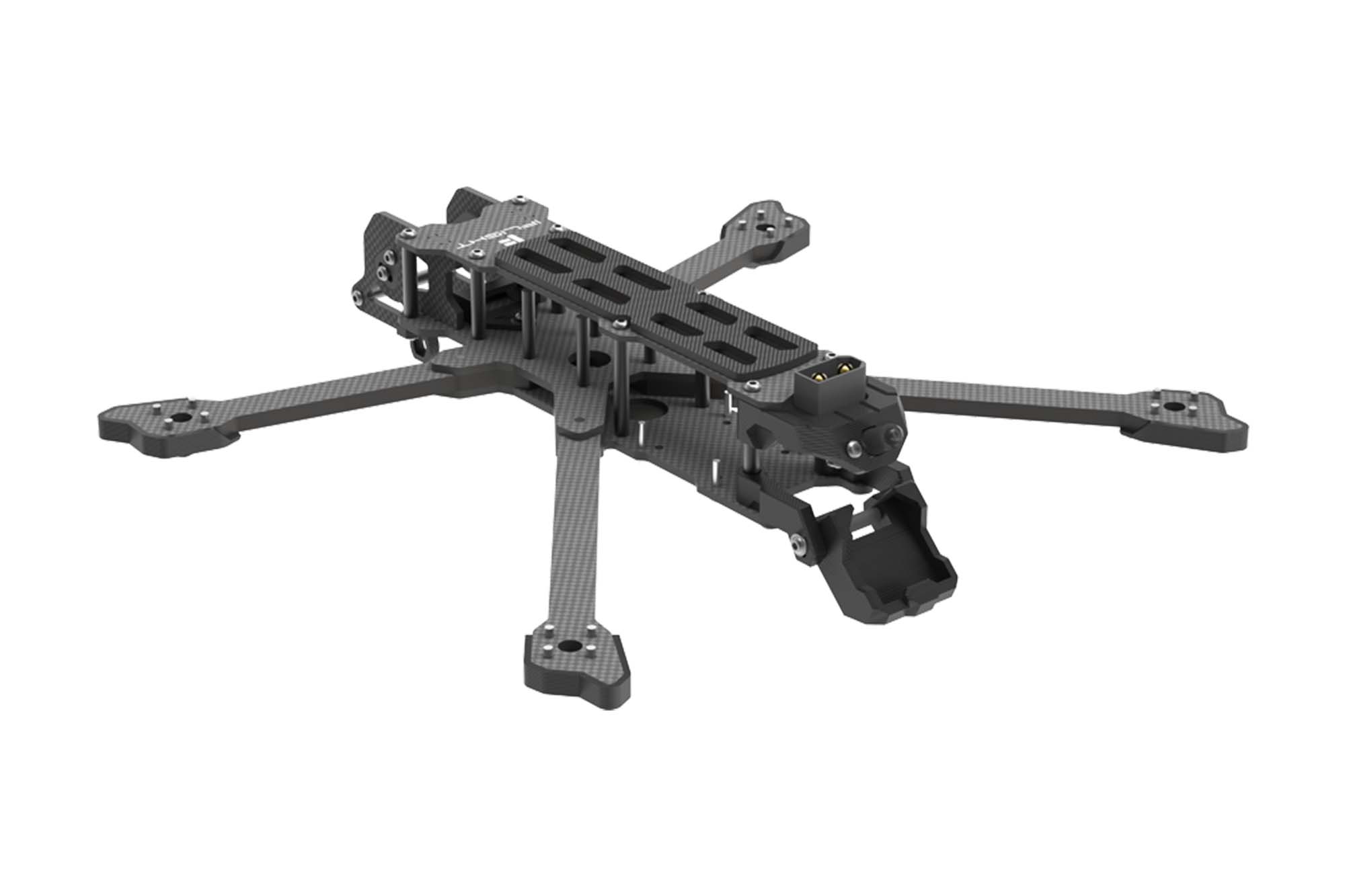

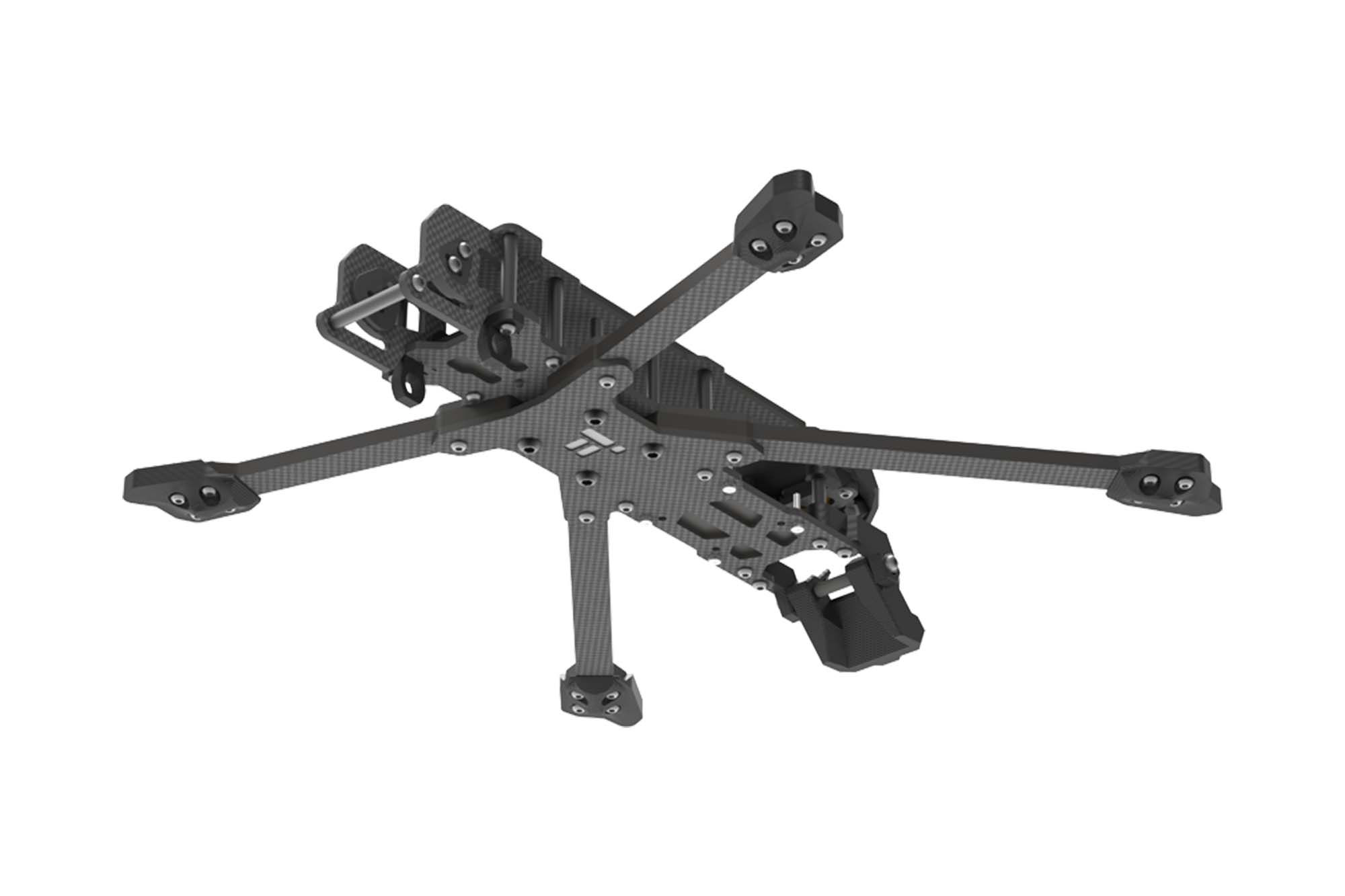

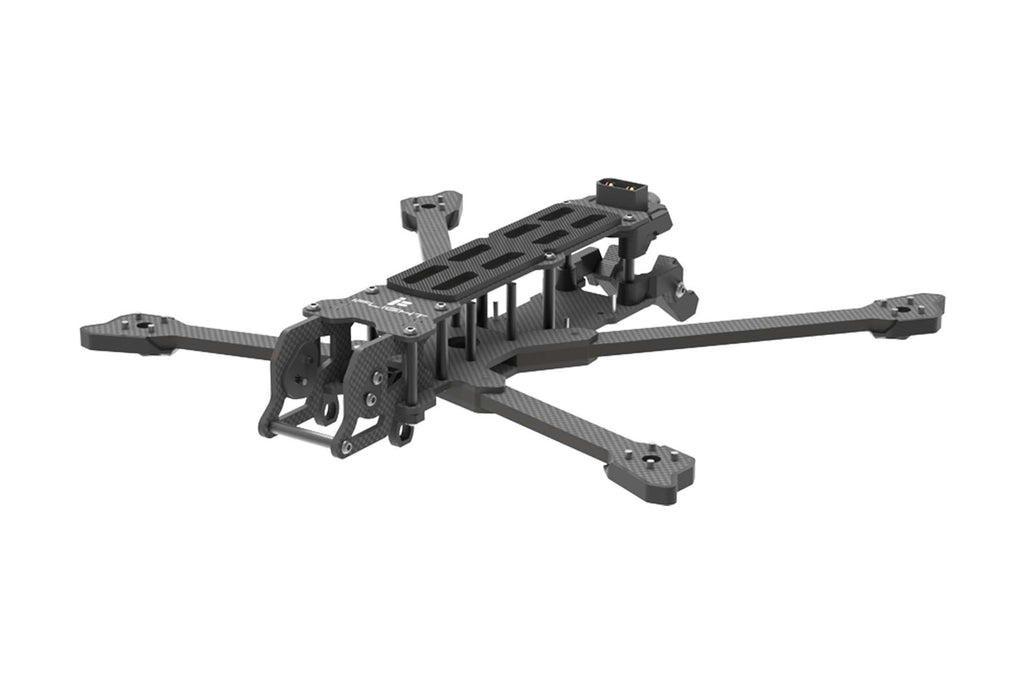

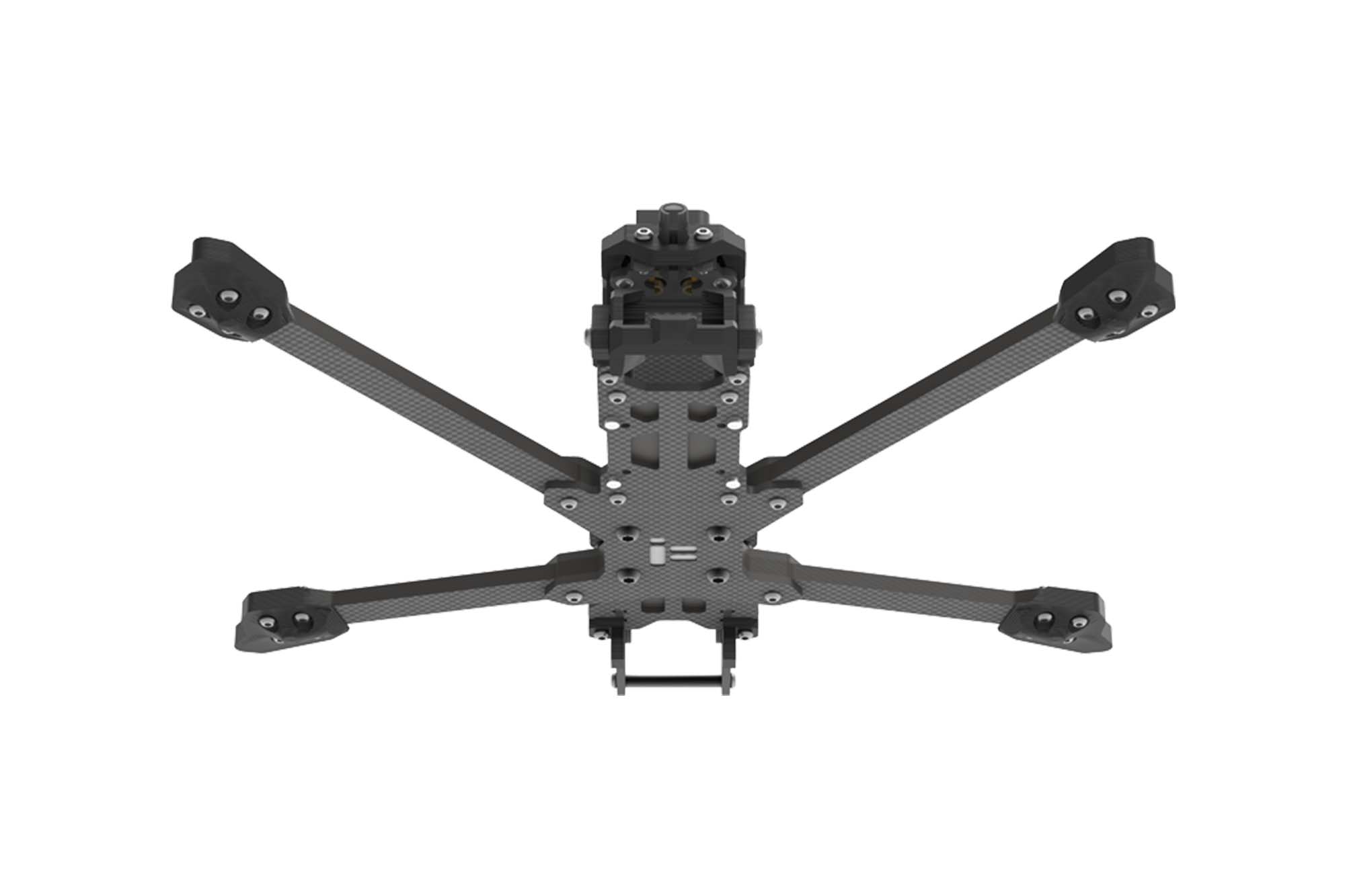

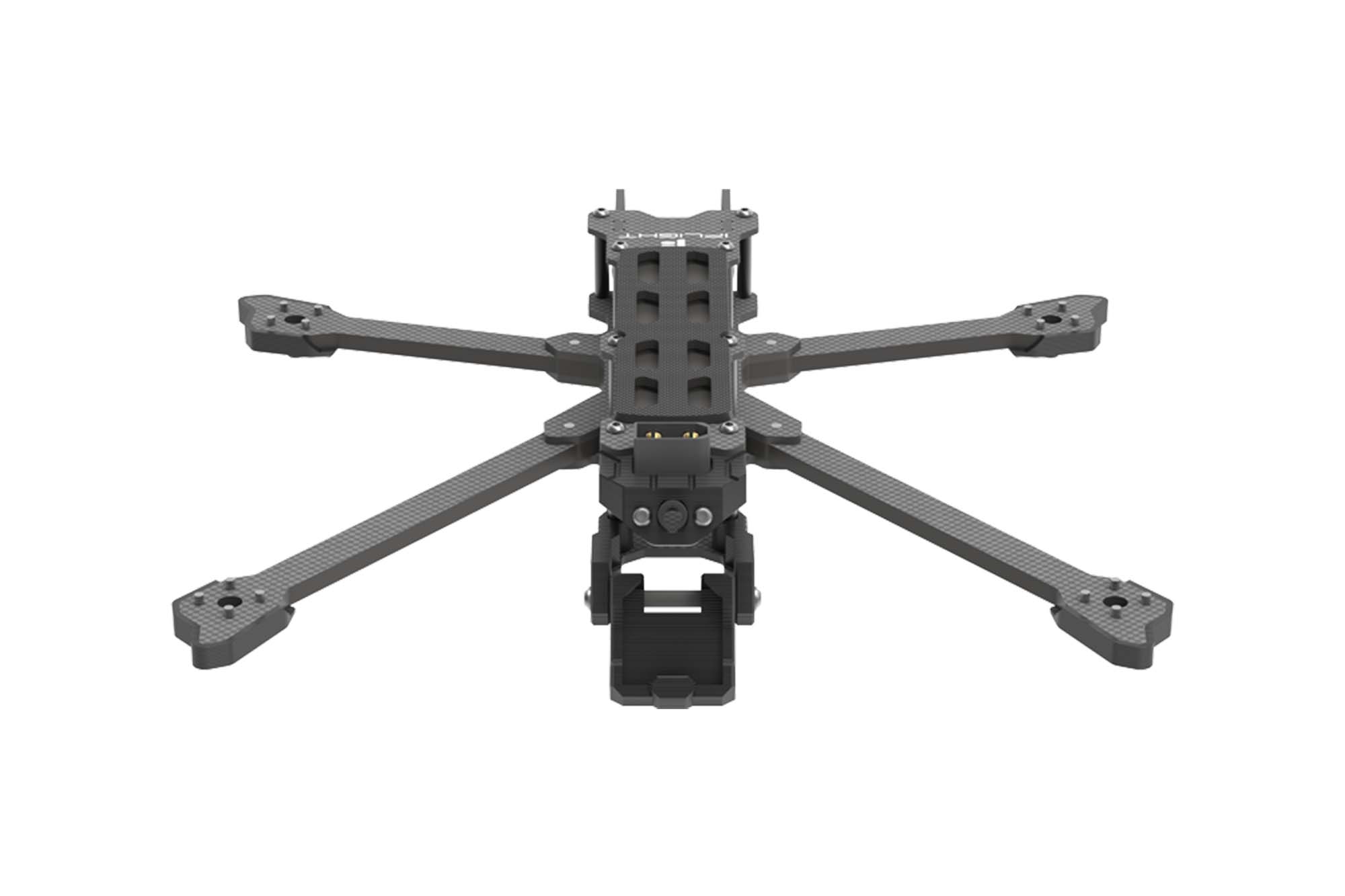

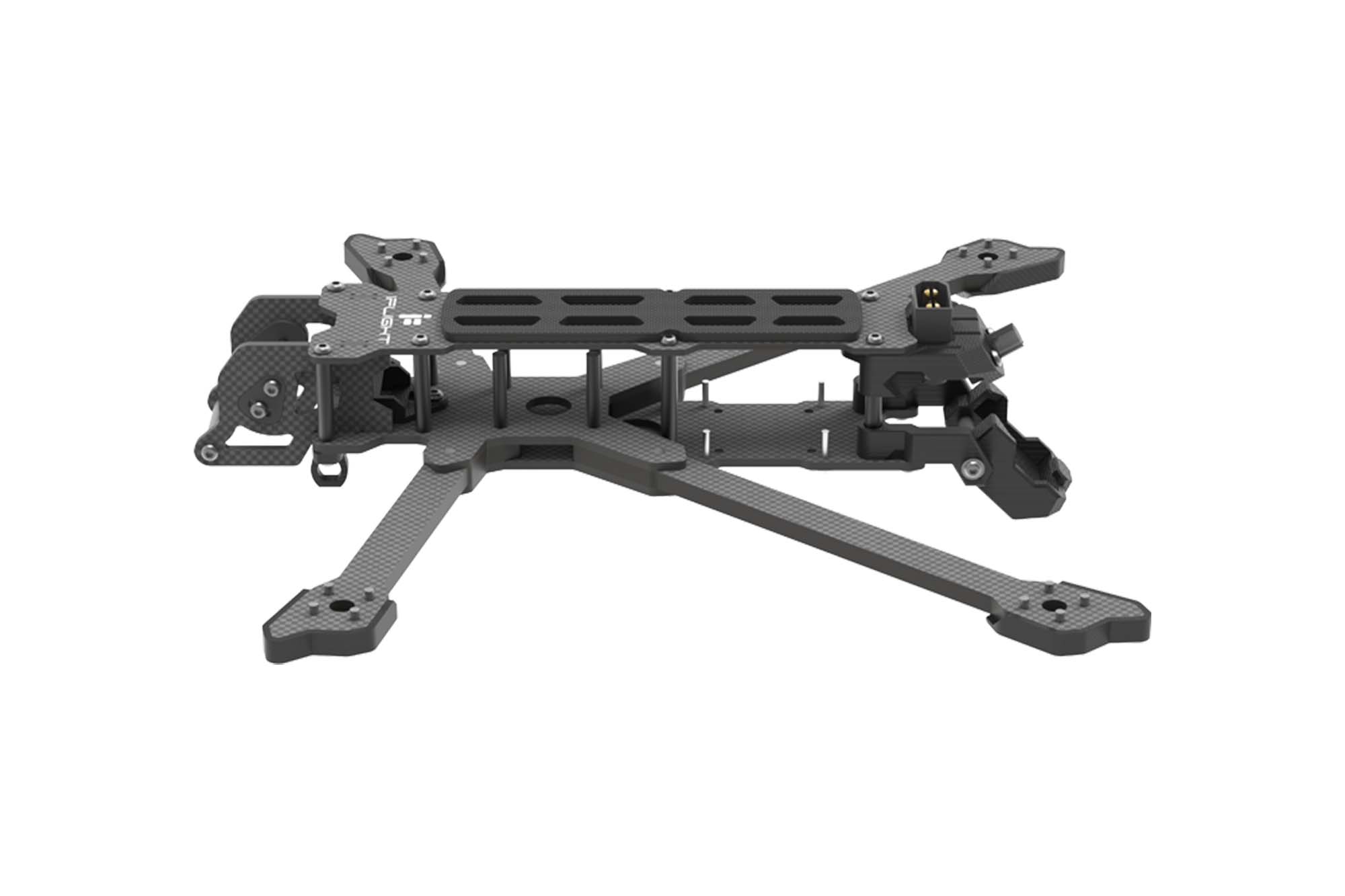

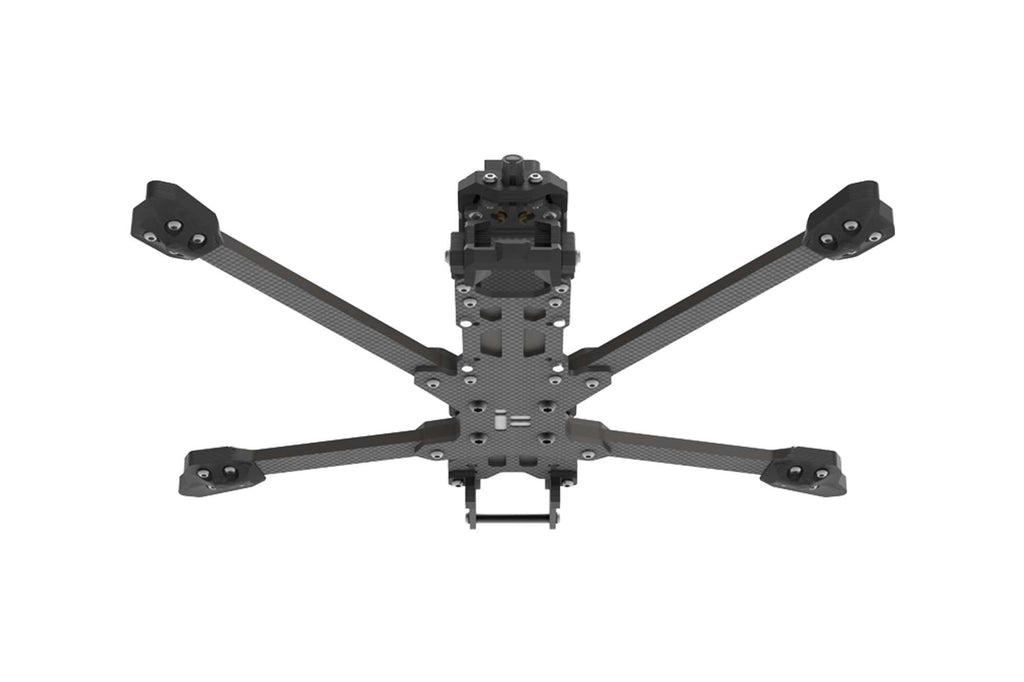

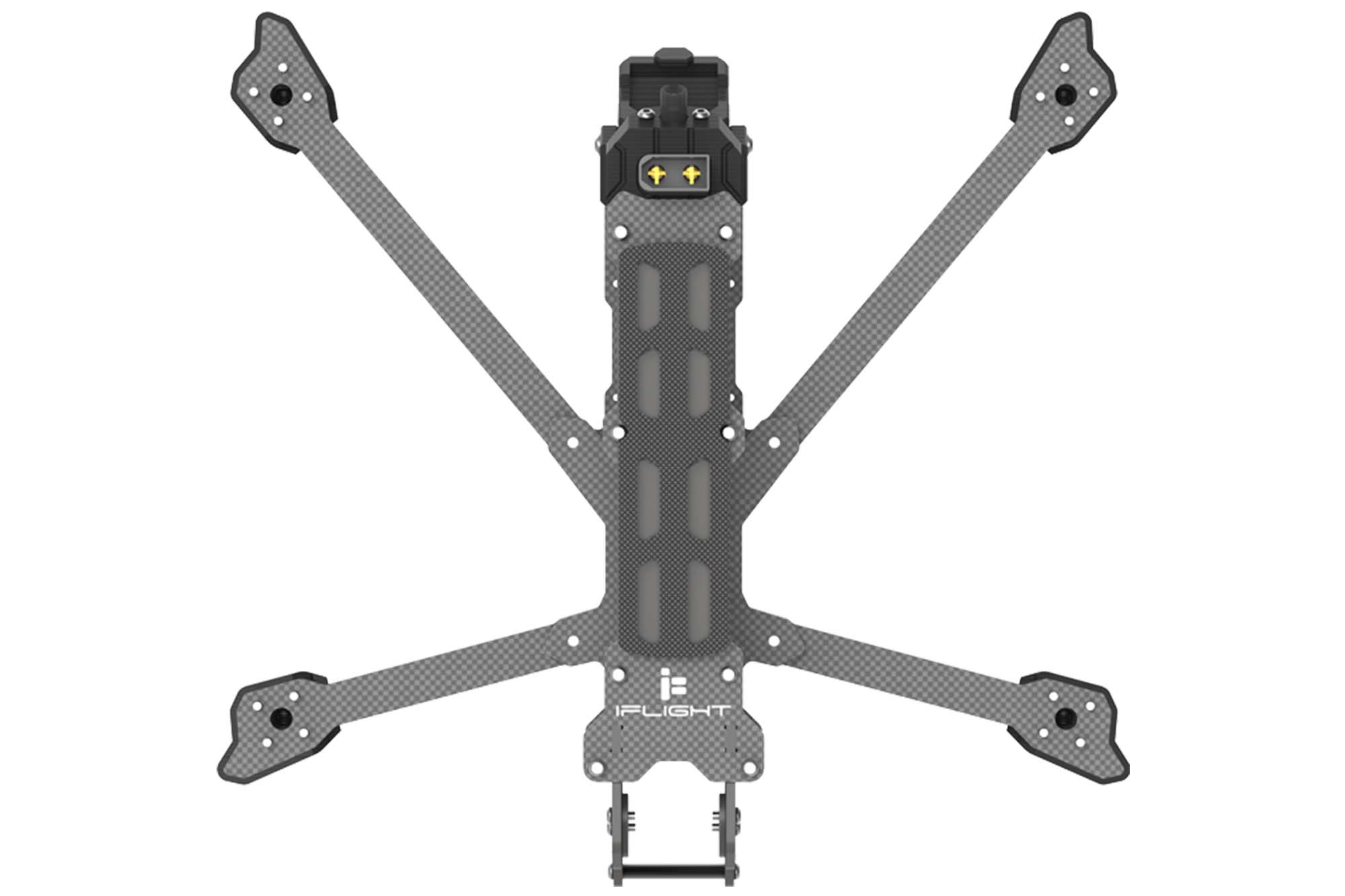

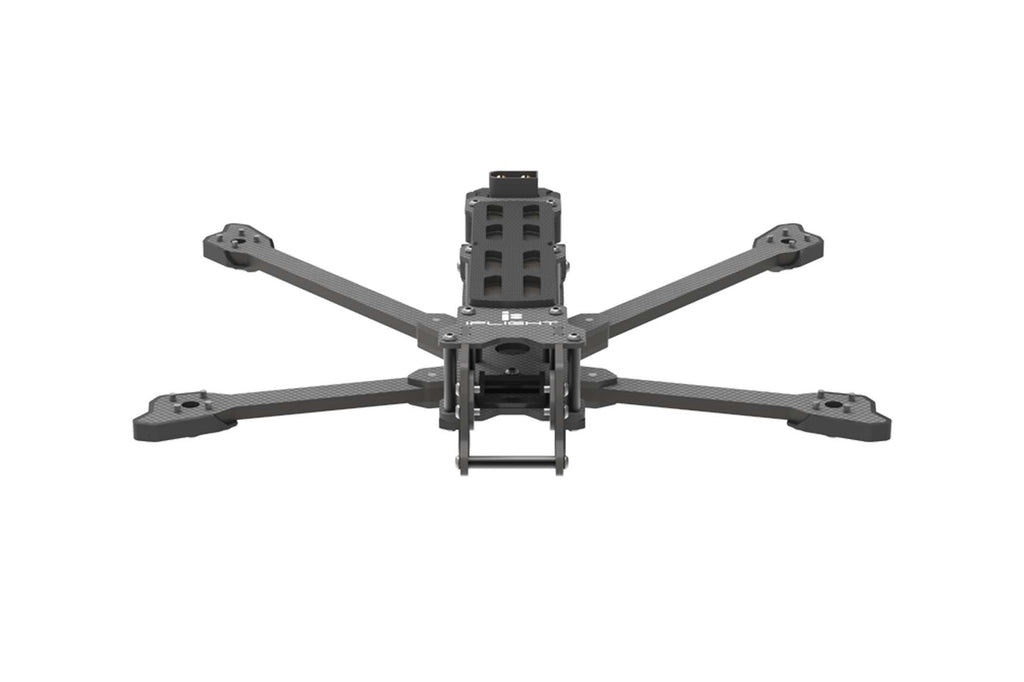

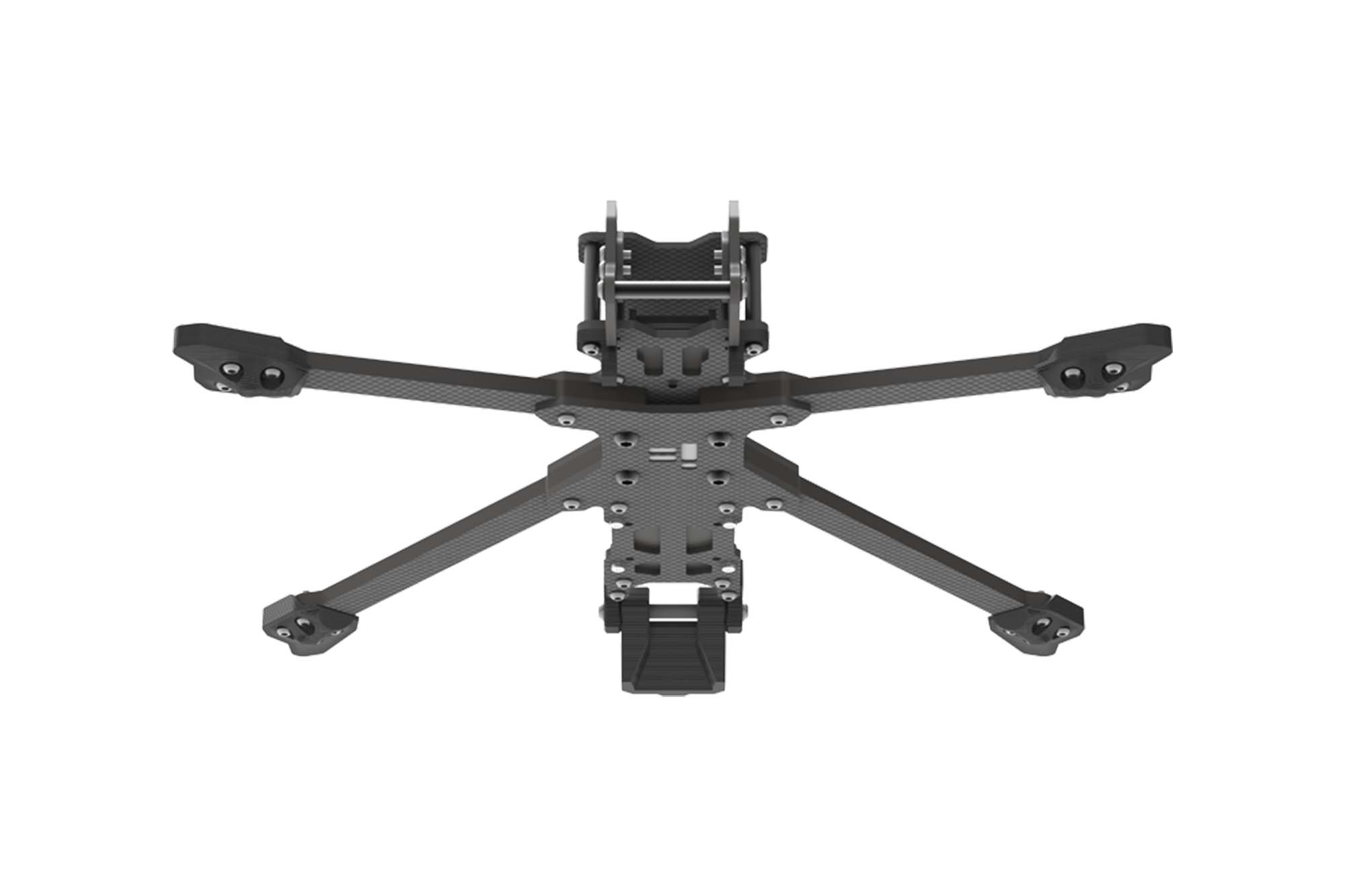

iFlight Chimera5 Pro V2 Frame Kit - IF-A-01-04

iFlightSKU: DA-iF-28

Sale price£43.00

Tax included Shipping calculated at checkout

In stock, ready to be shipped


We dispatch all orders the very same day when placed before our cut-off times. Please see below our current cut off times:

Royal Mail: 3pm | DPD/UPS: 12pm

Same-day dispatch excludes bank holidays and special circumstances - always consult our announcements bar at the top of the page for any exceptions.

Reward Points ⭐️

You could earn 129 points from this item. Learn more.


Introducing our ultra-light Long Range 5 inch Frame kit for every terrain and beyond. If our iFlight Chimera4 is too small and light to fight against stronger winds, here you go.

The latest version of this frame has updated camera side plates to support the DJI O3 Air Unit and other 19-20mm FPV cameras.


  • New Camera Side Plate to perfectly fit the O3 Air Unit
  • Secured Integrated XT60 Battery Plug
  • New GPS Mount, easy to disassemble


  • Product Name:Chimera5 Pro V2 Frame Kit
  • Wheelbase: 225mm
  • Frame Dimension: L140*W176*H28.5 mm
  • Frame Body Dimension: 28.5mm
  • Arm Thickness: 4mm
  • Bottom Plate Thickness: 2mm
  • Top Plate Thickness: 1.5mm
  • Upper Plate Thickness: 2mm
  • Motor Mounting: 12x12mm/φ2mm
  • Max Flight Stack Height: 19mm
  • Max VTX Height: 25mm
  • Flight Stack Mounting: 20*20/φ3mm
  • VTX Mounting: 25*25 φ1.6mm / 20*20 φ2mm
  • Weight: 135grams


  • 1 x Chimera5 Pro V2 Frame Kit
  • 1 x TPU Set
  • 1 x Screw Bag
  • 1 x Anti-Slip Battery Pad
  • 2 x Battery Strap

Product Details

Product TypeFrame
Shipping Weight229 grams

Customer Reviews

Did you know that you could earn 50 reward points for every product review left and an additional 25 points for also adding a photo? Learn more.

Support Information

Further product support information: https://iflightrc.freshdesk.com/support/home
