Description

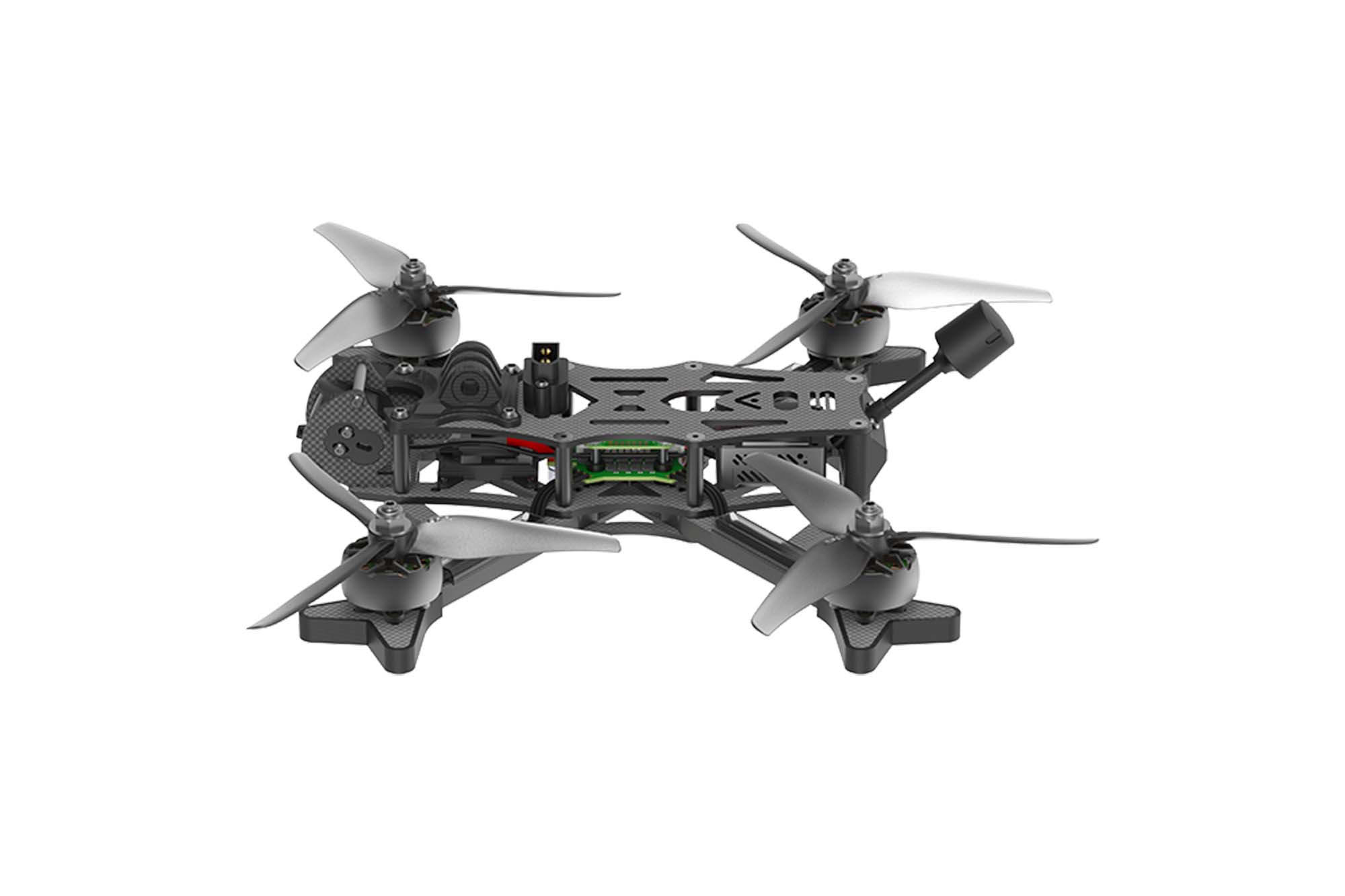

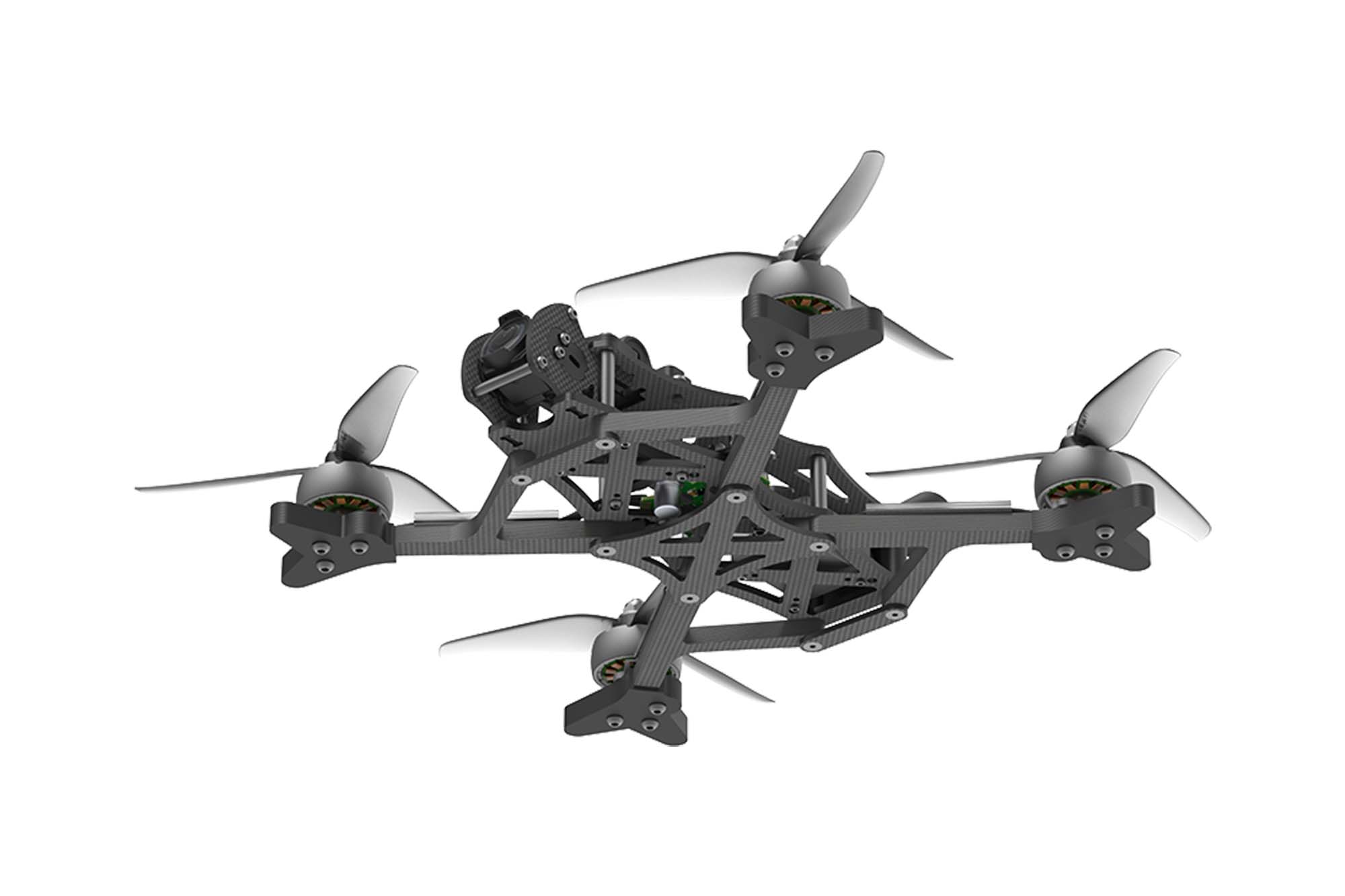

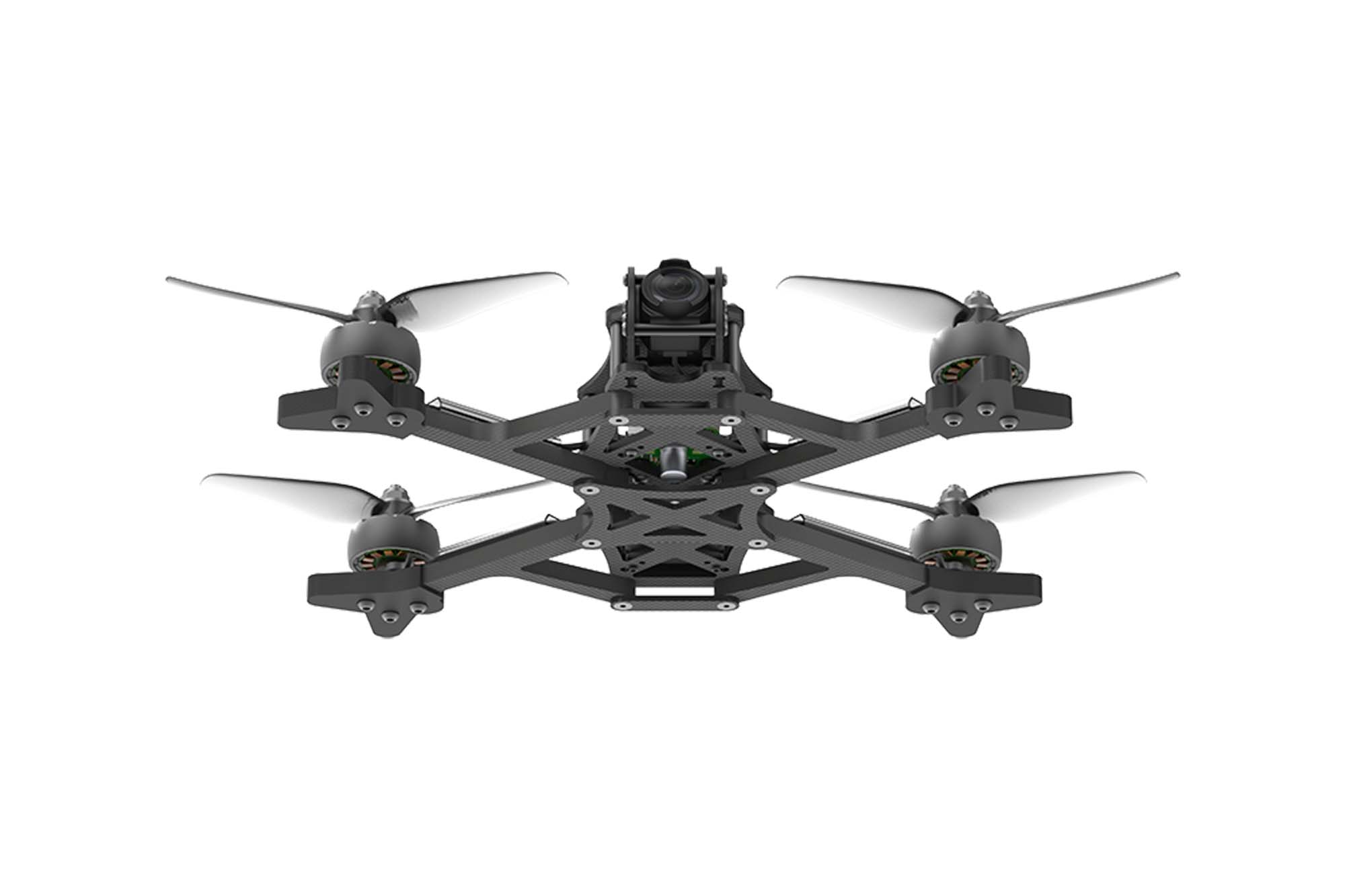

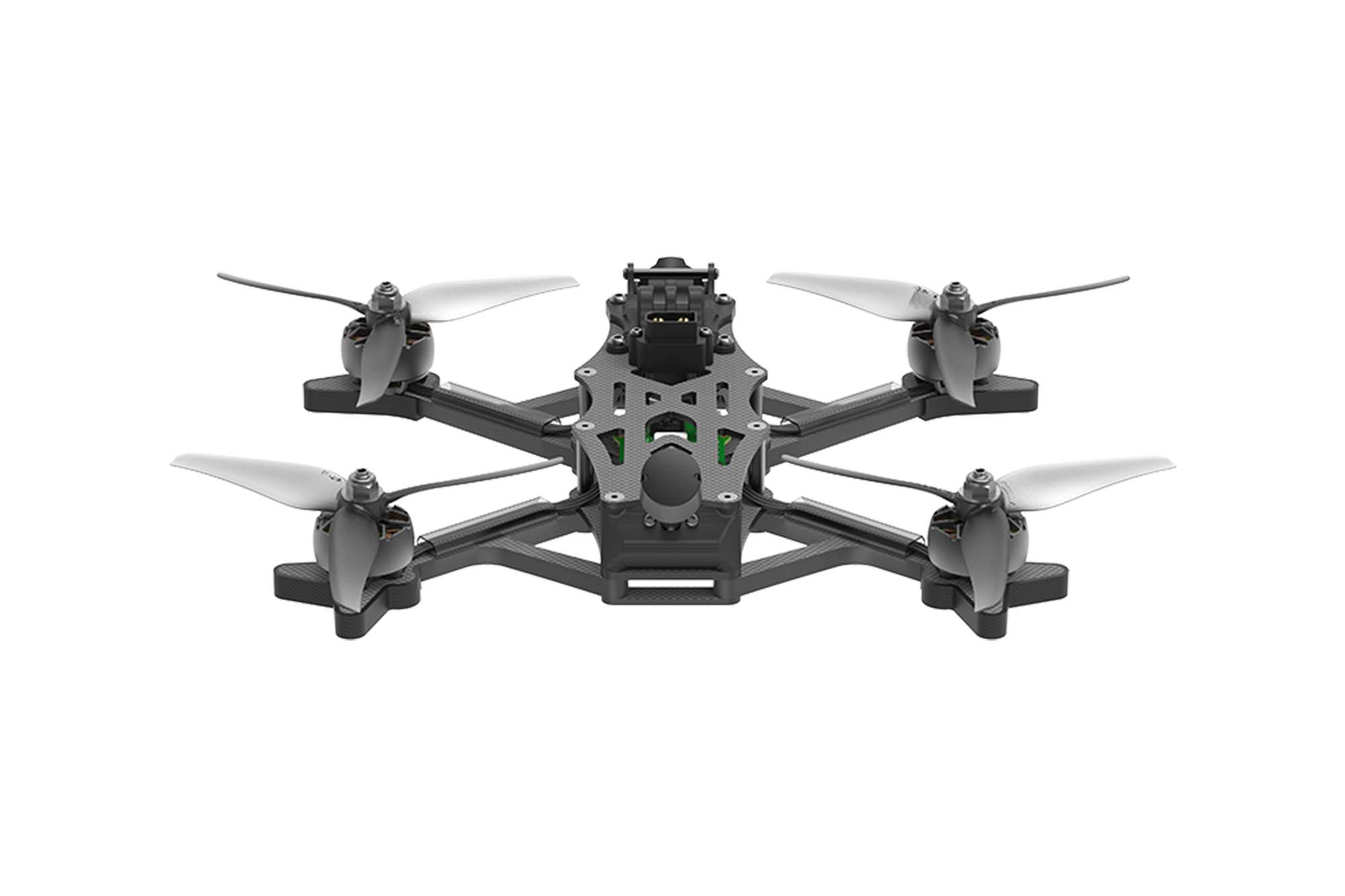

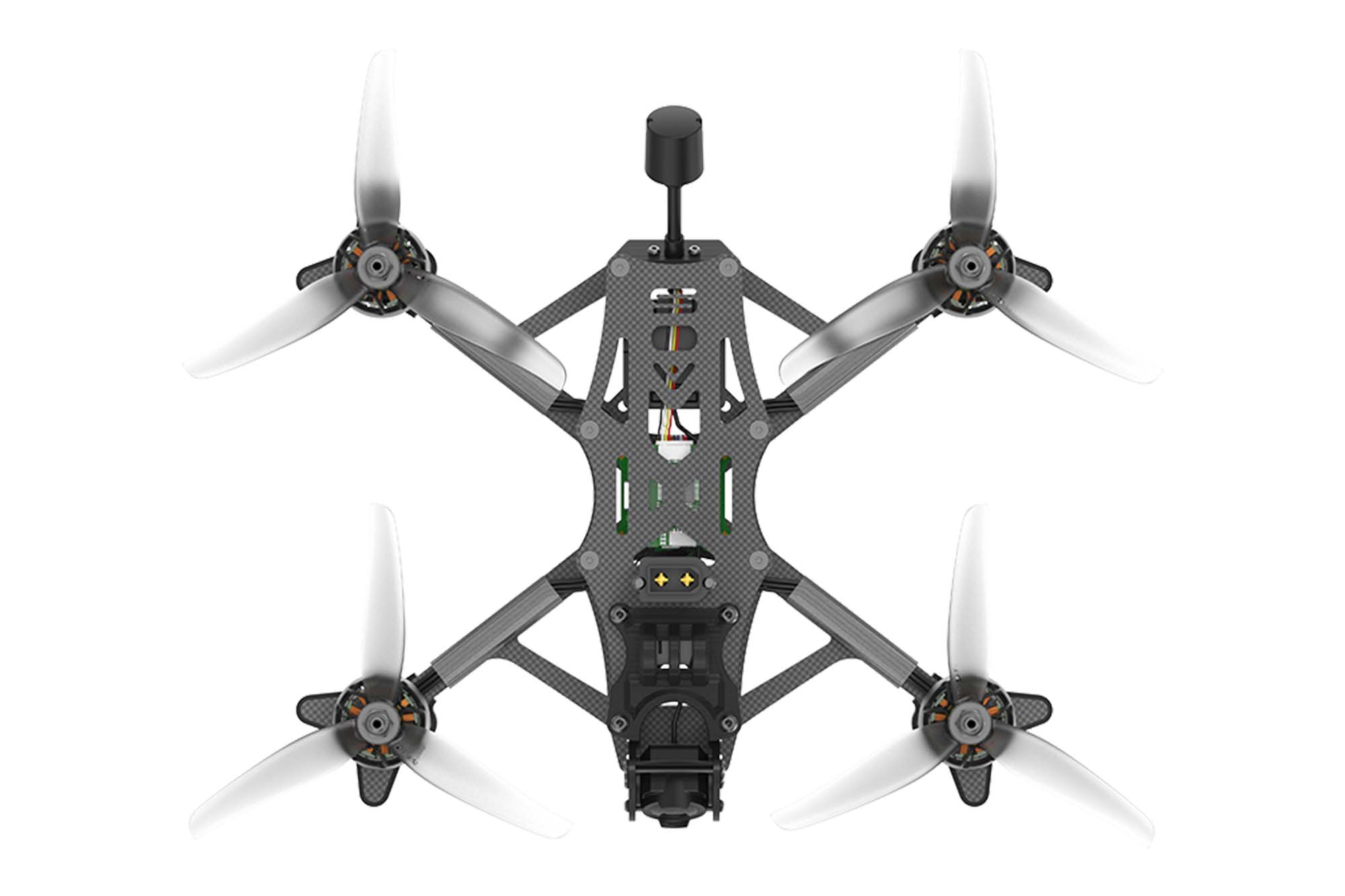

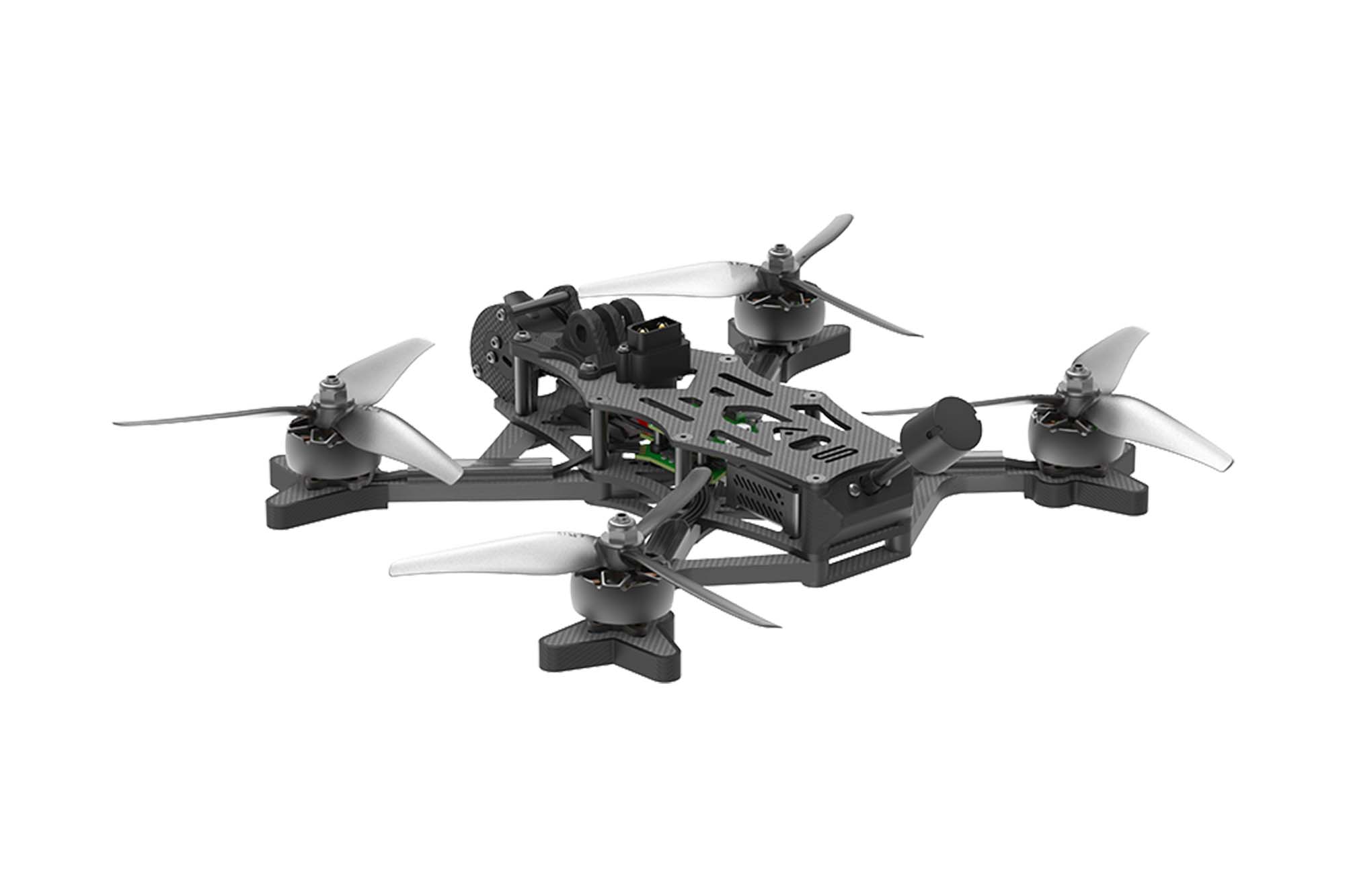

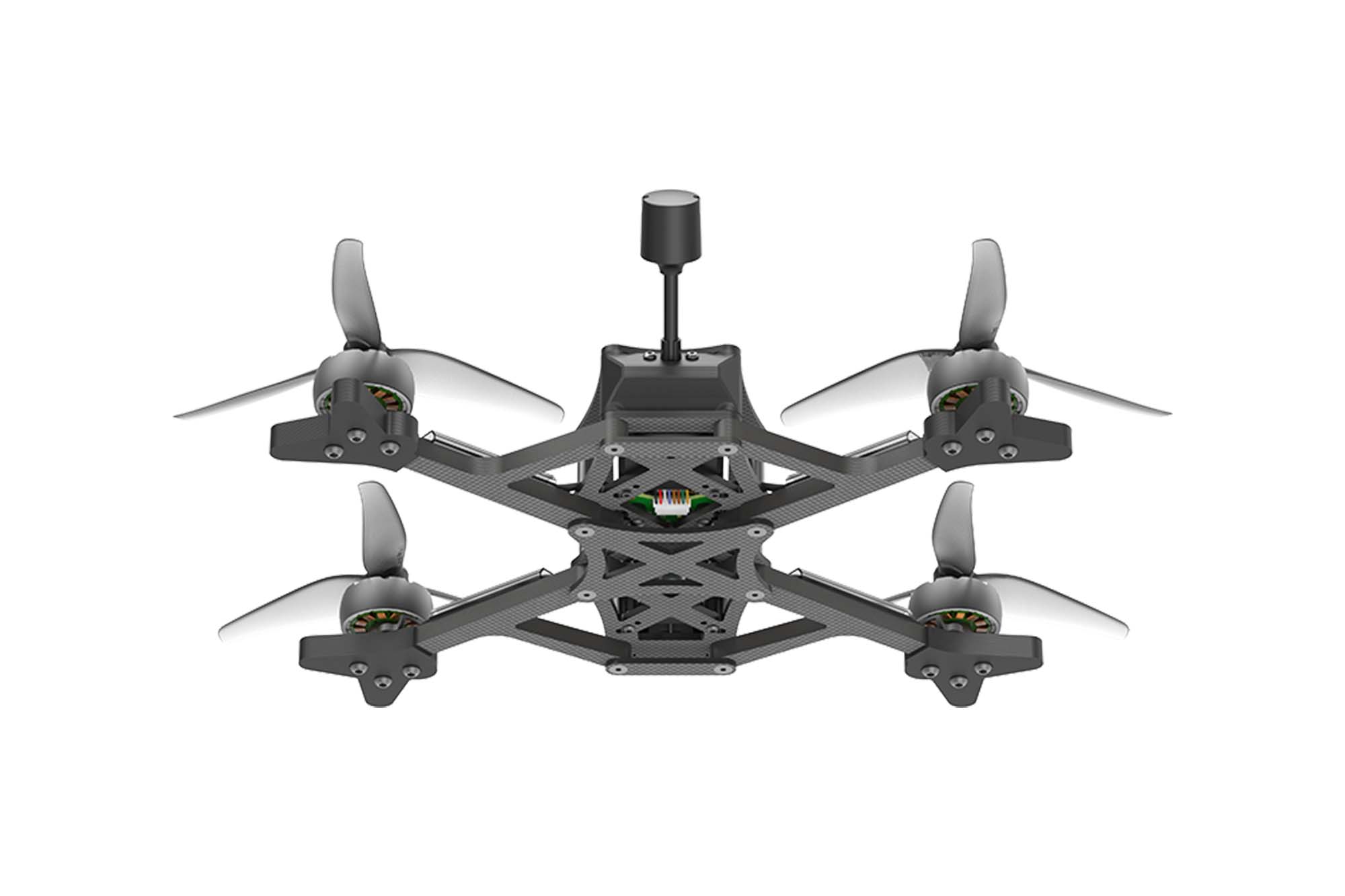

The AOS 5 EVO is a lightweight drone designed with low-vibration technology. This drone features state-of-the-art electronics and topology optimization. The AOS 5 EVO allows you to run less filtering, with less associated delay, and increase your PID gains far higher than any other frame in its weight class. Get ready for the most responsive 5" quad you have ever flown!
Features
- DJI O3 HD Air Unit Low-Latency Digital Transmission
- Secured Battery Plug with Anti-Spark Filter
- Topology-optimized truss design arms
- 2.5mm Top and Bottom Plates
- Optimized Camera Protection
- 32x32 GoPro Mounting
- Built by iFlight
- Low Vibration
Specifications
- Product Name: AOS 5 V1.2 EVO
- FC: BLITZ Mini F722
- ESC: BLITZ Mini E55 55A 4-IN-1 ESC
- Video Transmission: DJI O3 Air Unit
- Frame: 220mm wheelbase
- Motor: XING2 2207 motors
- Prop: Nazgul 5 inch propellers
- Takeoff Weight: Approx. 395 g
- Dimensions (L×W×H): 175×135×32.5 mm
- Max Speed: 190 Km/h (Manual Mode)
- Maximum Takeoff Altitude: 6000 m
- Max Hover Time: Approx. 7.5 mins with 1400mAh
- Max Flight Distance: 5 km
- Max Wind Speed Resistance: Level 7
- Operating Temperature Range: -10° to 40° C (14° to 104° F)
- Antennas: 1 Antenna
- GNSS: N/A
- Product Name：DJI O3 Air Unit
- Communication Frequency：2.400-2.4835 GHz (RX only) / 5.725-5.850 GHz (RX and TX)
- Communication Bandwidth： Max 40 MHz
- Live View Quality and Latency
- With DJI FPV Goggles V2:
- 810p/120fps Video Transmission Quality: The video transmission latency is lower than 28 ms.
- 810p/60fps Video Transmission Quality: The video transmission latency is lower than 40 ms.
- With DJI Goggles 2:
- 1080p/100fps Video Transmission Quality: The video transmission latency is as low as 30 ms.
- 1080p/60fps Video Transmission Quality: The video transmission latency is as low as 40 ms.
- Max Video Transmission Bitrate：50 Mbps
- Max Video Transmission Range：10 km (FCC), 2 km (CE), 6 km (SRRC)
- Audio Transmission：N/A
Includes
- 1 x AOS 5 EVO V1.2 6S HD BNF
- 2 x Antennas
- 2 x Battery pads
- 2 x Prop(Pairs)
Product Details
| Product Type | BNF |
| Shipping Weight | 672 grams |
| Vendor | iFlight |
Customer Reviews
Did you know that you could earn 50 reward points for every product review left and an additional 25 points for also adding a photo? Learn more.
Support Information
Further product support information: https://iflightrc.freshdesk.com/support/home
