Additional Information
Due to the permanent and potentially destructive nature of soldering and connecting to other devices in general, always remember to test electronics first, before attempting to solder to them or connect any accessories.
For a flight controller, this can always be achieved by connecting to the board via USB and verifying that everything is working via the configurator. To test an ESC, you can power up the board via crocodile clips. We sell crocodile clips here for this very purpose.
Please see the Items requiring soldering section of our refund policy for more information.
Reward Points ⭐️
You could earn 299 points from this item. Learn more.
Description
Specification

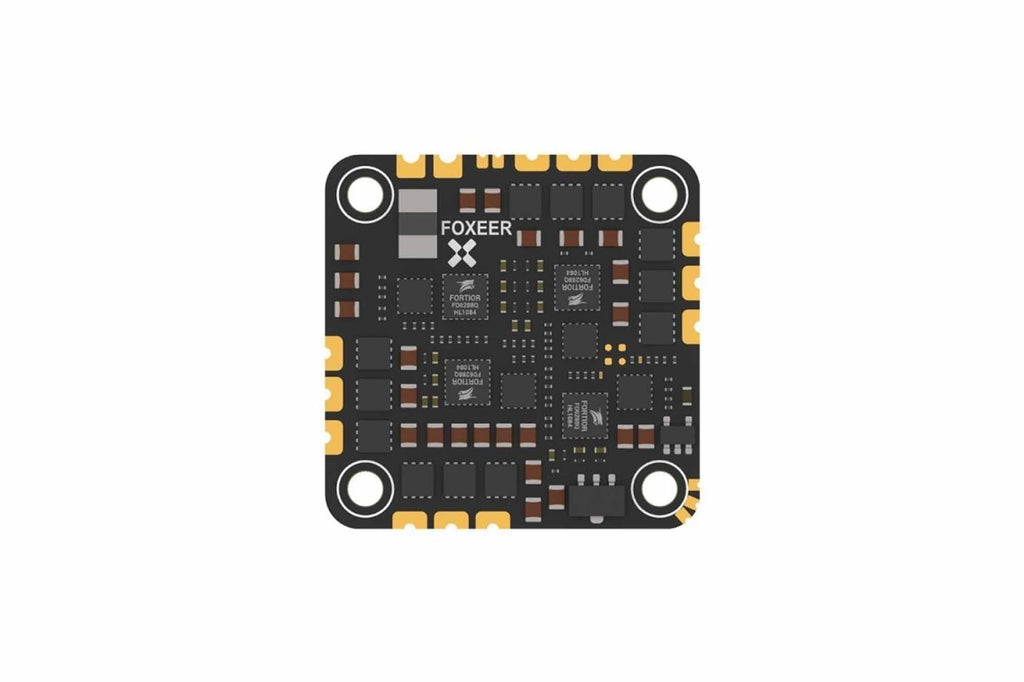

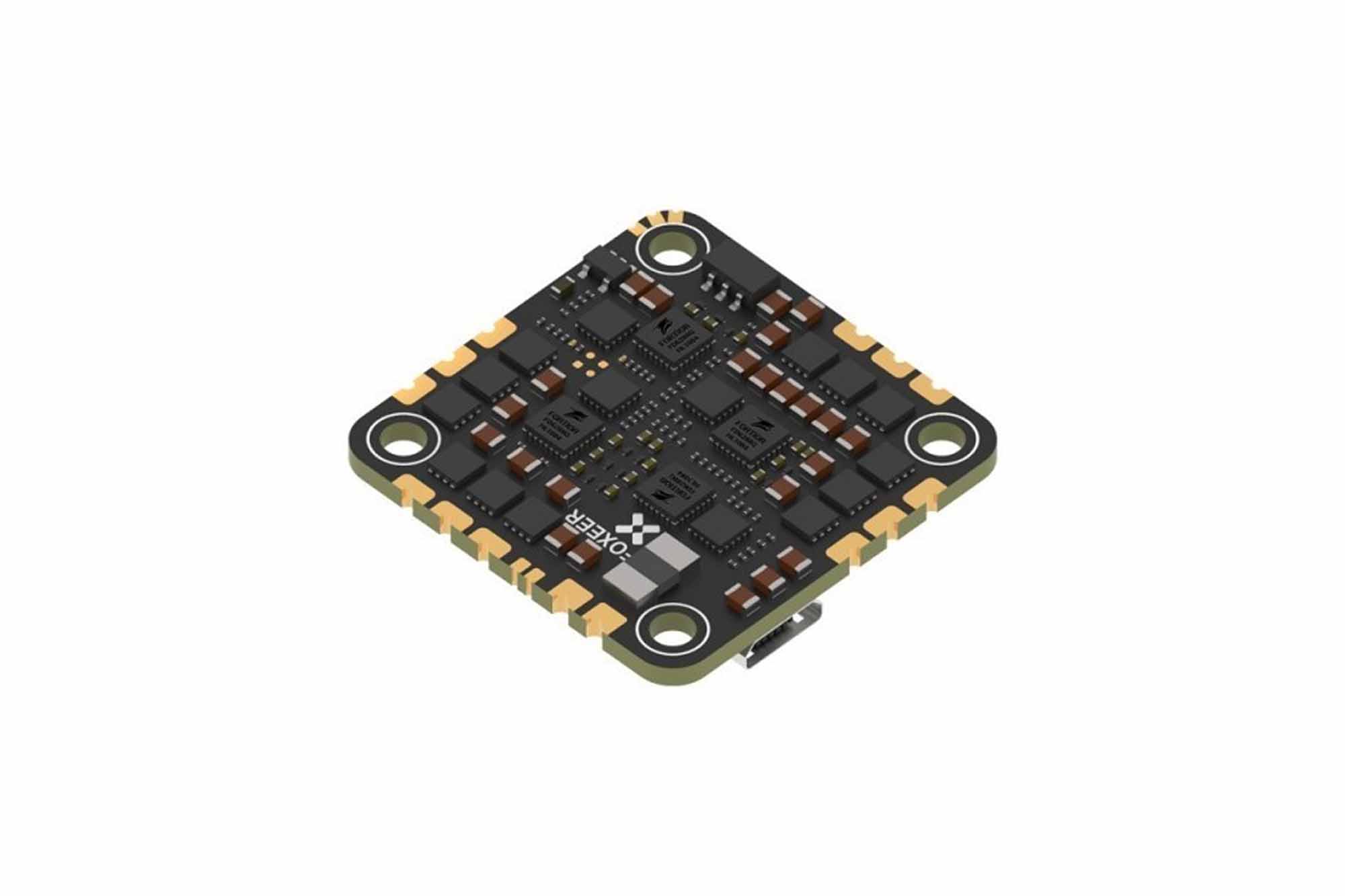

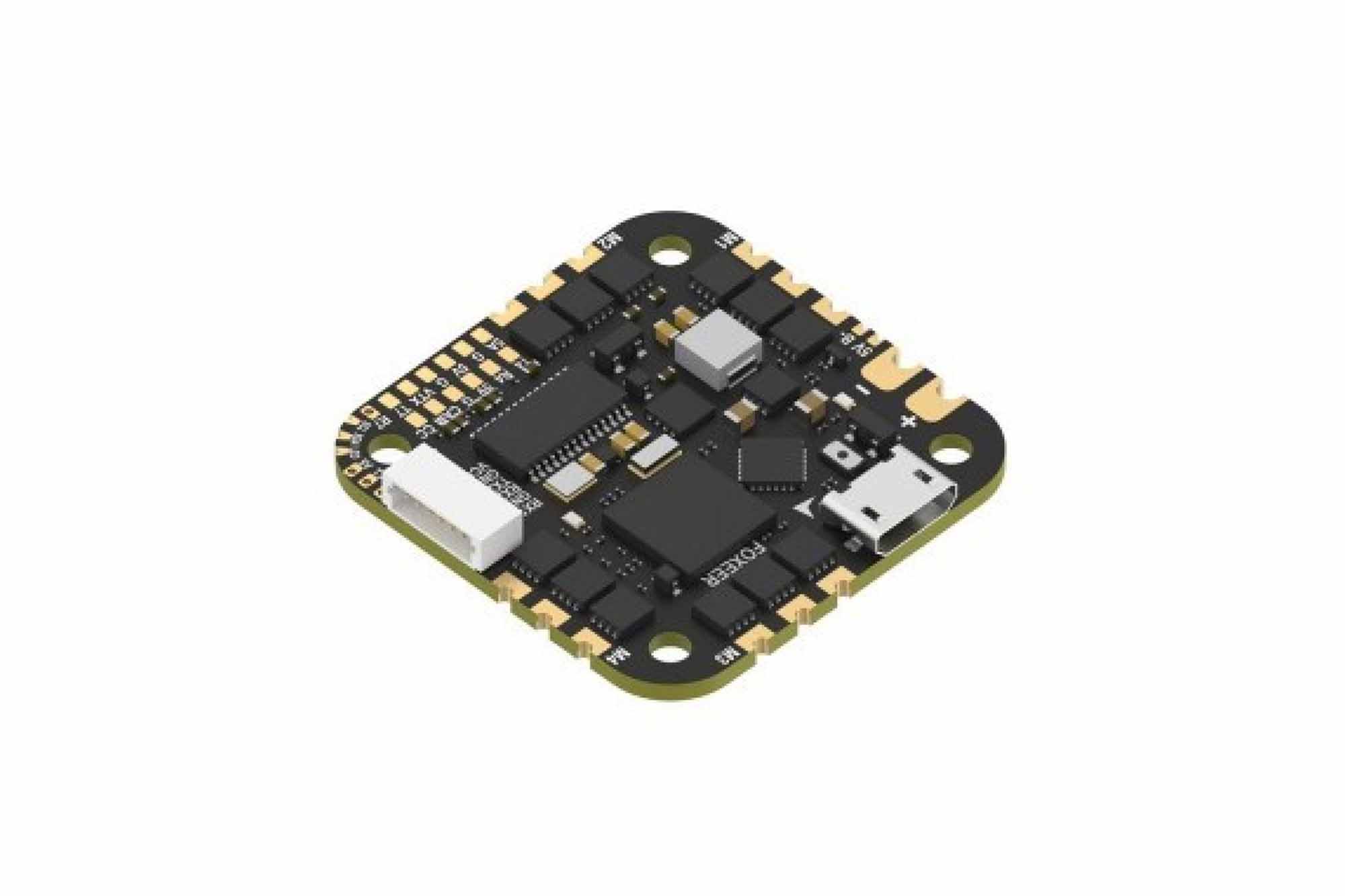

| Model | FOXEER Reaper AIO V4 |
| CPU | STM32F745 |
| Power Supply | 2~4S Lipo |
| BEC Output | DC5V/2A |
| OSD | BF OSD |
| Black Box | 16M Flash Memory |
| UART | 5 Set |
| USB | Micro USB |
| Fireware | BF:FOXEERF745V4_AIO |
| DJI Connector | Supported, 8pin |
| Size | 32.5X32.5mm |
| Mounting Hole | 25.5X25.5mm,Φ3mm/M2 |
| Weight(g) | 8.6g |
| Working Temperature | -20℃ ~ +55℃ |
| Working Humidity | 20～95% |
| Storage Temperature | -20℃ ~ +70℃ |
| Package Includes | 1*AIO, Rubbers Columns, XT30 Cable, DJI Cable, Capacity |
| Firmware | G-H-30 BLS 16.7 |
| Continuous /Burst Current | 35A x 4/ 45A x 4 |
| Input Voltage | 2~6S Lipo(8.4~25.2V) |
| Telemetry | No |
| ESC Programming | BLHeli-S |
| Stick Programming | Supported |
| Current sensor: | Supported |
| Current scale: | 100 |
| Input signal: | Dshot300/600 |
Product Details
| Product Type | ESC |
| Shipping Weight | 45 grams |
| Vendor | Foxeer |
| Quantity | 1 |
